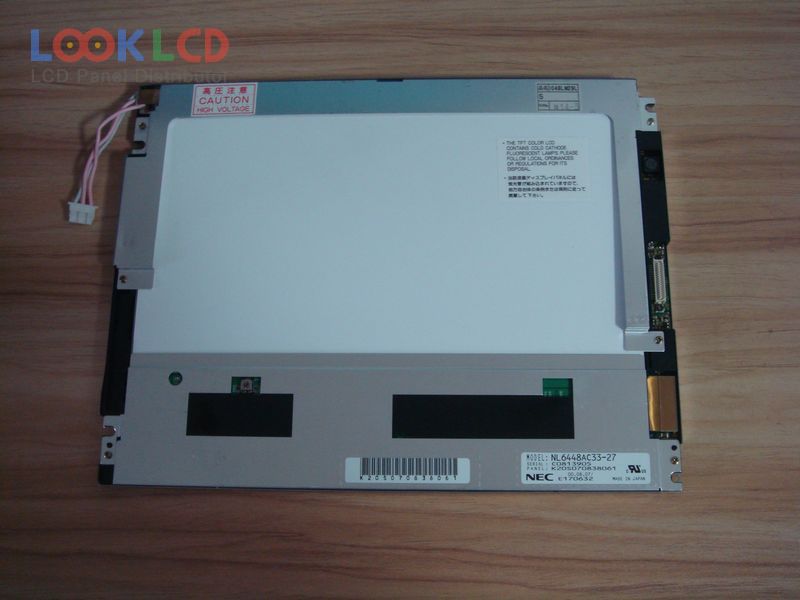

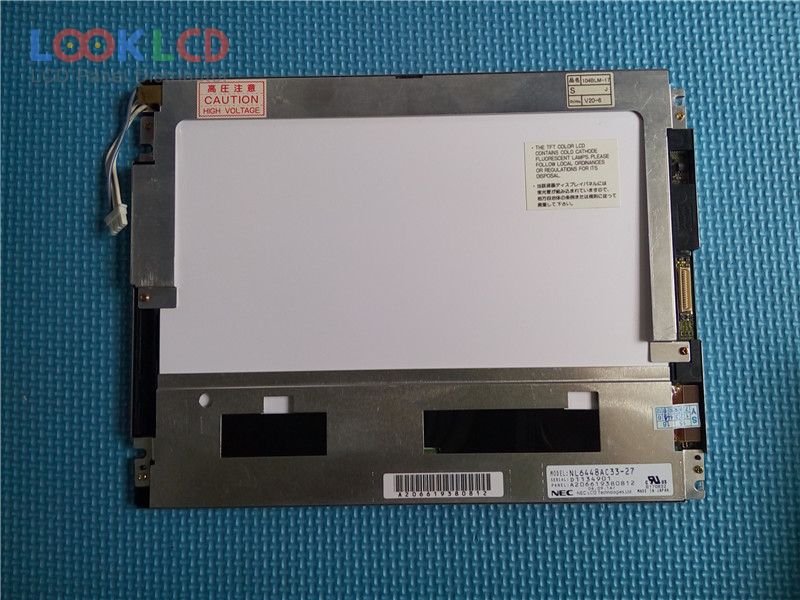

| PartNumber | NL6448AC33-27 |
| Znamka | NLT |
| Velikost | 10.4 |
| Aplikacija | IA |
| Resolucija | 640×480 |
| Sestava | LCM |
| Svetlost | 250 |
| CR | 300:1 |
| Barve | 262K |
| Osvetlitev ozadja | CCFL |
| Vmesnik | TTL |
| znamka plošče | NEC |
| panelni model | NL6448AC33-27 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 10.4 inch |
| resolucija | 640(RGB)×480 , VGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 211.2×158.4 mm |
| oris | 243×185.1×11.5 mm |
| površino | |
| svetlost | 250 cd/m² (Typ.) |
| kontrastno razmerje | 300:1 (Typ.) |
| barve zaslona | 262K (6-bit), CIE193143% |
| odzivni čas | 15/60 (Typ.)(Tr/Td) |
| vidni kot | 50/50/50/35 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 2 pcsCCFLEmbedded (Inverter) |
| signalni vmesnik | CMOS (1 ch, 6-bit), 31 pins |
| vhodna napetost | 3.3/5.0V (Typ.) |
| aplikacija | IA |
