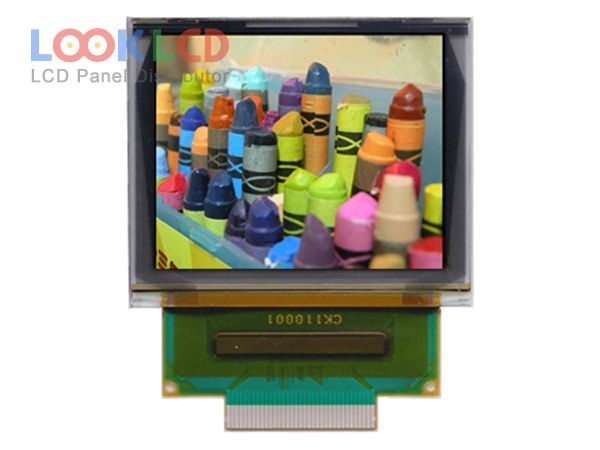

| PartNumber | UG-6028GDEBF02 |
| Znamka | WiseChip |
| Velikost | 1.7 |
| Aplikacija | IA |
| Resolucija | 160×128 |
| Sestava | OLED |
| Svetlost | 75 |
| CR | 2000:1 |
| Barve | 262K |
| Osvetlitev ozadja | self |
| Vmesnik | CPU/RGB/SPI |
| znamka plošče | WiseChip |
| panelni model | UG-6028GDEBF02 |
| vrsta plošče | PM-OLED , OLED |
| velikost plošče | 1.7 inch |
| resolucija | 160(RGB)×128 |
| aktivno območje | 33.575×26.864 mm |
| oris | 39.9×34×1.7 mm |
| površino | |
| svetlost | 75 cd/m² (Typ.) |
| kontrastno razmerje | 2000 : 1 (Typ.) |
| barve zaslona | 262K (6-bit) |
| vidni kot | 80/80/80/80 (Min.)(L/R/U/D) |
| voznik ic | COF Built-in SEPS525 |
| signalni vmesnik | 8/9-bit 8080 parallel, 6-bit RGB, 4-wire SPI, 35 pins |
| vhodna napetost | 2.8/2.8/14.0V (VDD/VDDIO/VDDH) |
| rohs: | |
| aplikacija | IA |
