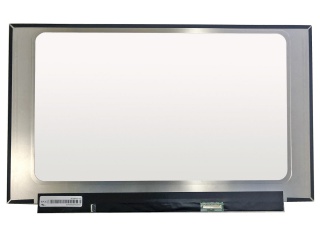

| PartNumber | NE156FHM-NZ1 |
| Znamka | BOE |
| Velikost | 15.6 |
| Aplikacija | Laptop Gaming |
| Resolucija | 1920×1080 |
| Sestava | LCM , Oxide TFT-LC |
| Svetlost | |
| CR | 800:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | 9S6P |
| Vmesnik | eDP |
| proizvajalec | BOE |
| velikost zaslona | 15.6 inch |
| število slikovnih pik | 1920(RGB)×1080 (FHD) 141PPI |
| aktivna površina (mm) | 344.16 × 193.59 (H×V) |
| površina okvirja (mm) | - |
| svetilnost | 300 cd/m² (Typ.) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| dober pogled na | Symmetry |
| barvna globina | 16.7M 100% sRGB |
| obrisna oblika | Slim (PCBA Flat, T≤3.2mm) |
| hitrost osveževanja | 240Hz |
| vrsto signala | eDP (4 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , 40 pins Connector |
| napajanje z napetostjo | 3.3V (Typ.) |
| maks. ocene | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| ime modela | NE156FHM-NZ1 (BOE0865) |
| vrsto zaslona | LCM , Oxide TFT-LCD |
| ureditev | RGB Vertical Stripe |
| obris (mm) | 350.66 × 216.05 × 2.6 (H×V×D) |
| zdravljenje | Antiglare (Haze 25%) |
| kontrastno razmerje | 800 : 1 (Typ.) (TM) |
| odgovor | 8 (Typ.)(Tr+Td); 4 (Typ.)(G to G) ms |
| način dela | HADS, Normally Black, Transmissive |
| osvetlitev ozadja | 9S6P WLED , 15K hours , With LED Driver |
| uporablja za | Laptop Gaming |
| zaslon na dotik | Without |
