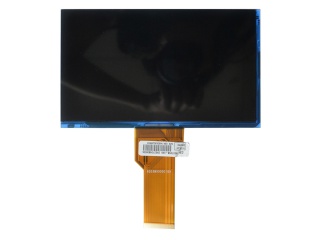

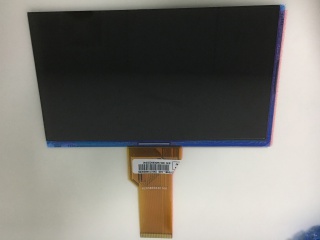

| PartNumber | NE070NB-04G |
| Znamka | Innolux |
| Velikost | 7.0 |
| Aplikacija | Digital Photo Frame |
| Resolucija | 800×480 |
| Sestava | a-Si TFT-LCD , CELL |
| Svetlost | |
| CR | 500:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | No |
| Vmesnik | Parallel |
| znamka | Innolux |
| velikost diagonale | 7.0 inch |
| slikovnih pik | 800(RGB)×480 [WVGA] 134PPI |
| aktivno območje | 154.08(H)×85.92(V) mm |
| območje okvirja | - |
| svetilnost | 0 cd/m² |
| smer pogleda | - |
| vidni kot | 70/70/50/70 (Typ.)(CR≥10) |
| debelina plošče | 0.50+0.50 mm |
| podpira barvo | 16.7M |
| utež | 47.0g (Typ.) |
| hitrost sličic | 60Hz |
| detajl d-ic | COG Built-in 1 source + 1 gate chips |
| tip vmesnika | Parallel RGB (1 ch, 8-bit) , 50 pins FPC |
| napajanje | 3.3/10.4/15/-10V (Typ.)(DVDD/AVDD/VGH/VGL) |
| okolju | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| model | NE070NB-04G |
| vrsta | a-Si TFT-LCD , CELL |
| konfiguracijo | RGB Vertical Stripe |
| obris dim. | 162.5(H)×96.62(V) ×1.43(D) mm |
| zdravljenje | Antiglare |
| kontrastno razmerje | 500:1 (Typ.) (TM) |
| odzivni čas | 25 (Typ.)(Tr+Td) |
| način delovanja | TN, Normally White, Transmissive |
| prepustnost | 4.61% (Typ.)(with Polarizer) |
| Izvor svetlobe | No B/L |
| namenjen za | Digital Photo Frame |
| plošča na dotik | Without |
