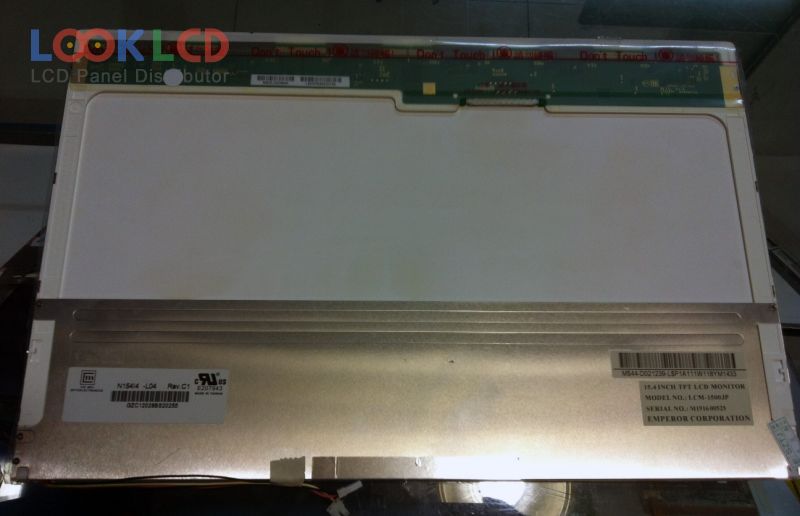

| PartNumber | N154I4-L04 |
| Znamka | Innolux |
| Velikost | 15.4 |
| Aplikacija | NBPC |
| Resolucija | 1280×800 |
| Sestava | LCM |
| Svetlost | 500 |
| CR | 800:1 |
| Barve | 262K |
| Osvetlitev ozadja | CCFL |
| Vmesnik | LVDS |
| znamka plošče | CMO |
| panelni model | N154I4-L04 3 Compatible model |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 15.4 inch |
| resolucija | 1280(RGB)×800 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 331.2×207 mm |
| oris | 344×224×6.5 mm |
| slog oblike | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površino | Glare (Haze 0%), Hard coating (3H) |
| svetlost | 500 cd/m² (Typ.) |
| kontrastno razmerje | 800:1 (Typ.) |
| barve zaslona | 262K (6-bit), CIE193172% |
| odzivni čas | 3/5 (Typ.)(Tr/Td) |
| vidni kot | 80/80/60/80 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 2 pcsCCFLWithout Driver |
| signalni vmesnik | LVDS (1 ch, 6-bit), 30 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NBPC |
| B154EW02 V1 | AUO | 15.4 | 1280×800 |
| LP154WE2-TLA7 | LG Display | 15.4 | 1680×1050 |
| N154I2-L01 | Innolux | 15.4 | 1280×800 |
| N154I2-L02 | Innolux | 15.4 | 1280×800 |
| N154I2-L05 | Innolux | 15.4 | 1280×800 |
| N154I3-L03 | Innolux | 15.4 | 1280×800 |
| N154I4-L03 | Innolux | 15.4 | 1280×800 |
| N154I4-L04 | Innolux | 15.4 | 1280×800 |
| N154I5-L02 | Innolux | 15.4 | 1280×800 |
| N154I6-L03 | Innolux | 15.4 | 1280×800 |
| B140QAN01.0 | AUO | 14.0 | 2560×1440 |
| B173HAN01.0 | AUO | 17.3 | 1920×1080 |
| BT140GW01 V.A | Innolux | 14.0 | 1366×768 |
| HB133WX1-402 | BOE | 13.3 | 1366×768 |
| HN133WU3-100 | BOE | 13.3 | 1920×1080 |
| HT140WXB-501 | BOE | 14.0 | 1366×768 |
| LP121WX3-TLA1 | LG Display | 12.1 | 1280×800 |
| LP154W01-TLAD | LG Display | 15.4 | 1280×800 |
| LP173WF1-TLA2 | LG Display | 17.3 | 1920×1080 |
| N140B6-L01 | Innolux | 14.0 | 1366×768 |
