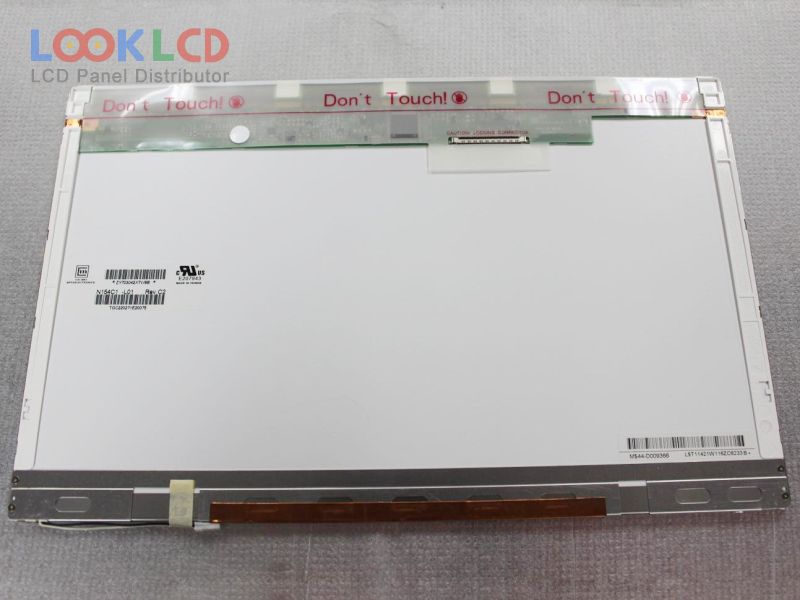

| PartNumber | N154C1-L01 |
| Znamka | Innolux |
| Velikost | 15.4 |
| Aplikacija | NBPC |
| Resolucija | 1440×900 |
| Sestava | LCM |
| Svetlost | 300 |
| CR | 400:1 |
| Barve | 262K |
| Osvetlitev ozadja | CCFL |
| Vmesnik | LVDS |
| znamka plošče | CMO |
| panelni model | N154C1-L01 5 Compatible model |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 15.4 inch |
| resolucija | 1440(RGB)×900 , WXGA+ |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 331.56×207.225 mm |
| oris | 344×222×6.2 mm |
| slog oblike | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površino | Glare (Haze 0%), Hard coating (3H), Reflection 1.2% (Typ.) |
| svetlost | 300 cd/m² (Typ.) |
| kontrastno razmerje | 400:1 (Typ.) |
| barve zaslona | 262K (6-bit), CIE193145% |
| odzivni čas | 8/23 (Typ.)(Tr/Td) |
| vidni kot | 65/65/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 1 pcsCCFLWithout Driver |

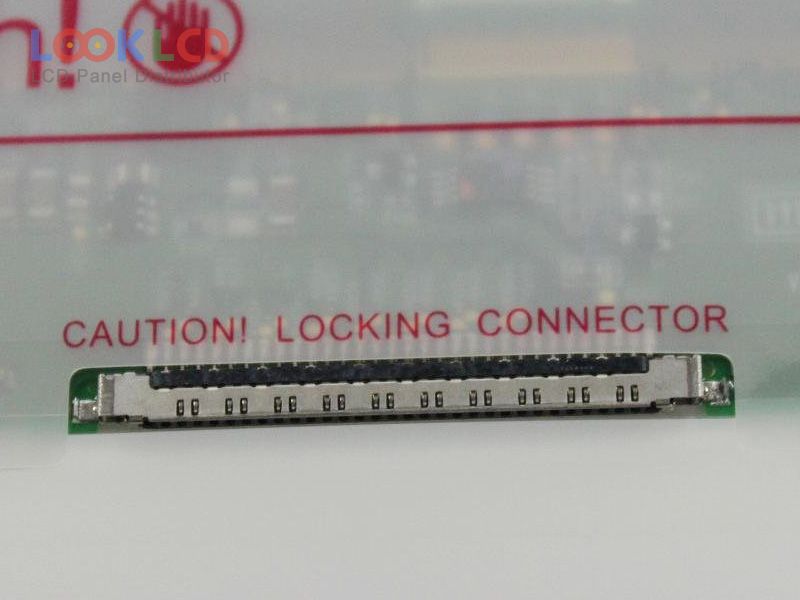

| signalni vmesnik | LVDS (2 ch, 6-bit), 30 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NBPC |
| B154SW01 V2 | AUO | 15.4 | 1680×1050 |
| LP154WP1-TLA1 | LG Display | 15.4 | 1440×900 |
| LP154WP2-TLA1 | LG Display | 15.4 | 1440×900 |
| LP154WX5-TLC2 | LG Display | 15.4 | 1280×800 |
| LTN154BT02-004 | Samsung | 15.4 | 1440×900 |
| LTN154BT05-001 | Samsung | 15.4 | 1440×900 |
| LTN154U2-L03 | Samsung | 15.4 | 1920×1200 |
| N154C1-L01 | Innolux | 15.4 | 1440×900 |
| N154C3-L02 | Innolux | 15.4 | 1440×900 |
| N154C6-L04 | Innolux | 15.4 | 1440×900 |
| B141PW03 V1 | AUO | 14.1 | 1440×900 |
| B160HW02 V0 | AUO | 16.0 | 1920×1080 |
| CLAA141WB05A | CPT | 14.1 | 1280×800 |
| LQ150U1LW22 | SHARP | 15.0 | 1600×1200 |
| LTN133AT23-001 | Samsung | 13.3 | 1366×768 |
| LTN154AT12-D01 | Samsung | 15.4 | 1280×800 |
| LTN154X9-L02 | Samsung | 15.4 | 1280×800 |
| LTN156AT17-103 | Samsung | 15.6 | 1366×768 |
| LTN173KT01-B07 | Samsung | 17.3 | 1600×900 |
| N141I3-L05 | Innolux | 14.1 | 1280×800 |
