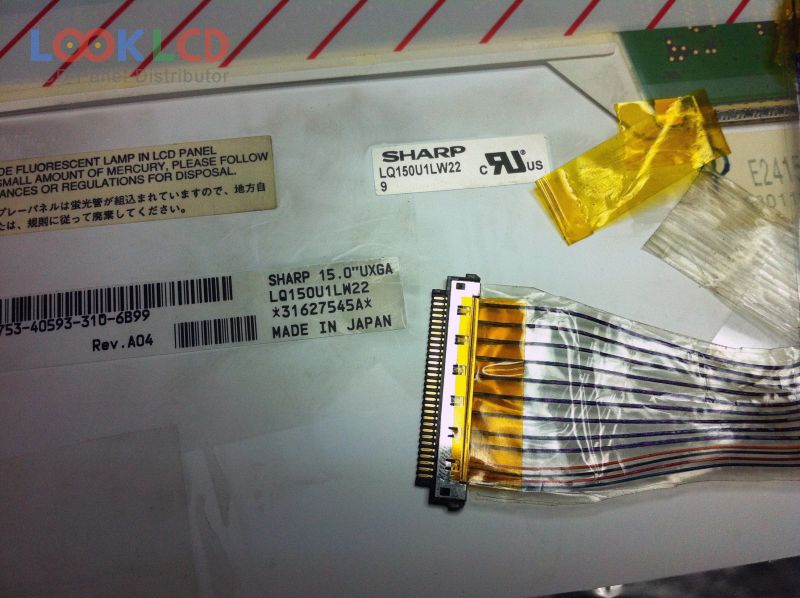

| PartNumber | LQ150U1LW22 |
| Znamka | SHARP |
| Velikost | 15.0 |
| Aplikacija | NBPC |
| Resolucija | 1600×1200 |
| Sestava | LCM |
| Svetlost | 180 |
| CR | 400:1 |
| Barve | 262K |
| Osvetlitev ozadja | CCFL |
| Vmesnik | LVDS |
| znamka plošče | SHARP |
| panelni model | LQ150U1LW22 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 15.0 inch |
| resolucija | 1600(RGB)×1200 , UXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 304×228 mm |
| oris | 317.3×242×7 mm |
| slog oblike | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površino | Antiglare, Hard coating (2H), Reflection 1.7% (Max.) |
| svetlost | 180 cd/m² (Typ.) |
| kontrastno razmerje | 400:1 (Typ.) |
| barve zaslona | 262K (6-bit) |
| odzivni čas | 9/16 (Typ.)(Tr/Td) |
| vidni kot | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 1 pcsCCFLEmbedded (Inverter) |
| signalni vmesnik | LVDS (2 ch, 6-bit), 30 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NBPC |
