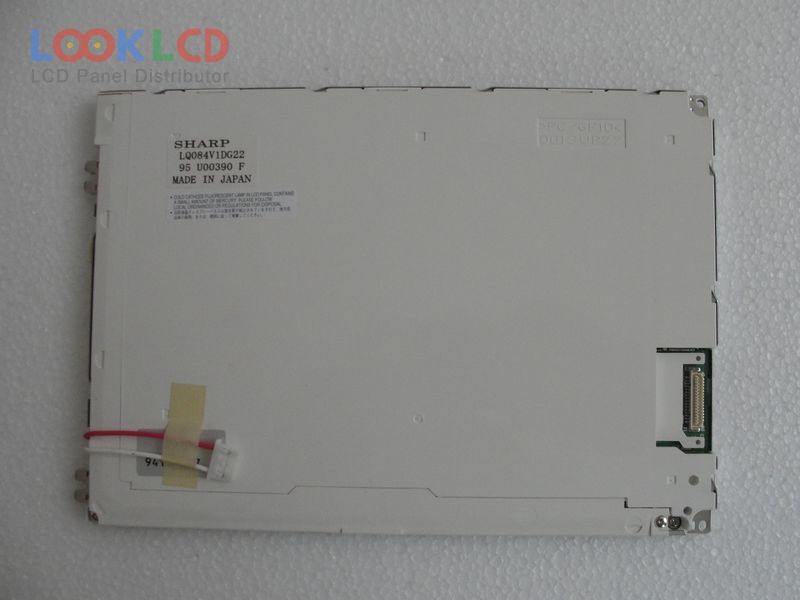

| PartNumber | LQ084V1DG22 |
| Znamka | SHARP |
| Velikost | 8.4 |
| Aplikacija | IA |
| Resolucija | 640×480 |
| Sestava | LCM |
| Svetlost | 300 |
| CR | 250:1 |
| Barve | 262K |
| Osvetlitev ozadja | CCFL |
| Vmesnik | TTL |
| znamka plošče | SHARP |
| panelni model | LQ084V1DG22 1 Compatible model |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 8.4 inch |
| resolucija | 640(RGB)×480 , VGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 170.88×129.6 mm |
| oris | 216×152.4 mm |
| površino | Antiglare (Haze 28%), Hard coating (3H) |
| svetlost | 300 cd/m² (Typ.) |
| kontrastno razmerje | 250:1 (Typ.) |
| barve zaslona | 262K (6-bit) |
| odzivni čas | 20/40 (Typ.)(Tr/Td) |
| vidni kot | 55/55/55/40 (Typ.)(CR≥10)(L/R/U/D) |
| tip svetilke | 1 pcsCCFL |
| signalni vmesnik | Parallel RGB (1 ch, 6-bit), 31 pins |
| vhodna napetost | 3.3/5.0V (Typ.)(VCC) |
| aplikacija | IA |
