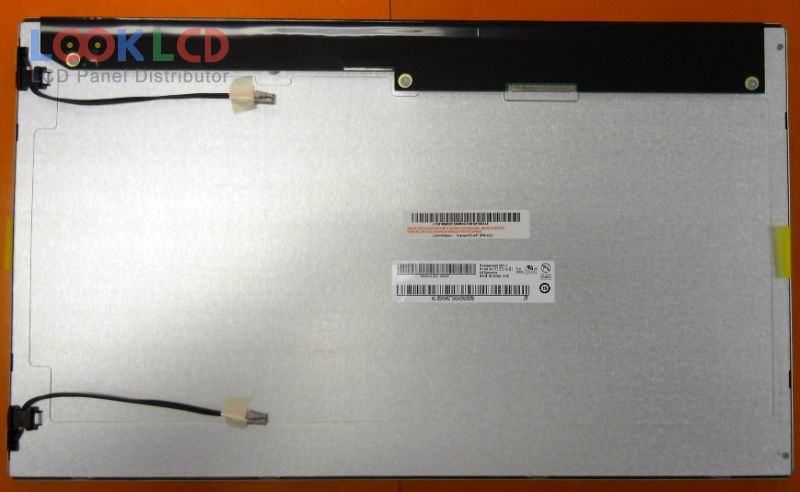

| PartNumber | M185XW01 V4 |
| Znamka | AUO |
| Velikost | 18.5 |
| Aplikacija | DMPC |
| Resolucija | 1366×768 |
| Sestava | LCM |
| Svetlost | 250 |
| CR | 1000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | CCFL |
| Vmesnik | LVDS |
| znamka plošče | AUO |
| panelni model | M185XW01 V4 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 18.5 inch |
| resolucija | 1366(RGB)×768 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 409.8×230.4 mm |
| oris | 430.37×254.6×16.5 mm |
| površino | Glare (Haze 0%), Hard coating (3H) |
| svetlost | 250 cd/m² (Typ.) |
| kontrastno razmerje | 1000:1 (Typ.) |
| barve zaslona | 16.7M (6-bit + Hi-FRC), CIE193172% |
| odzivni čas | 3.6/1.4 (Typ.)(Tr/Td) |
| vidni kot | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 2 pcsCCFLWithout Driver |
| signalni vmesnik | LVDS (1 ch, 8-bit), 30 pins |
| vhodna napetost | 5.0V (Typ.) |
| aplikacija | DMPC |
