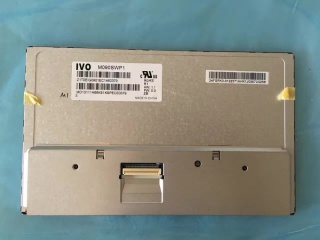

| PartNumber | M090SWP1 R1 |
| Znamka | IVO |
| Velikost | 9.0 |
| Aplikacija | Industrial |
| Resolucija | 800×480 |
| Sestava | a-Si TFT-LCD , LCM |
| Svetlost | - |
| CR | 500:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | |
| znamka plošče | IVO |
| velikost plošče | 9.0" |
| resolucija | 800(RGB)×480, WVGA, 104PPI |
| prikazno območje | 198(W)×111.696(H) mm |
| velikost obrisa | 211.1(W)×128.4(H) ×7.1(D) mm |
| svetlost | - |
| vidni kot | 70/70/50/70 (Typ.)(CR≥10) |
| najboljši pogled na | 6 o'clock |
| barve zaslona | 16.7M 50% NTSC |
| pogostost | 60Hz |
| utež | - |
| panelni model | M090SWP1 R1 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| slikovnih pik | RGB Vertical Stripe |
| odprtina okvirja | 201.0(W)×114.7(H) mm |
| površino | Antiglare, Hard coating (3H) |
| kontrastno razmerje | 500:1 (Typ.) (TM) |
| način prikaza | TN, Normally White, Transmissive |
| odzivni čas | 10/15 (Typ.)(Tr/Td) |
| tip svetilke | WLED , 20K hours , With LED Driver |
| zaslon na dotik | Without |
| aplikacija | Industrial |
