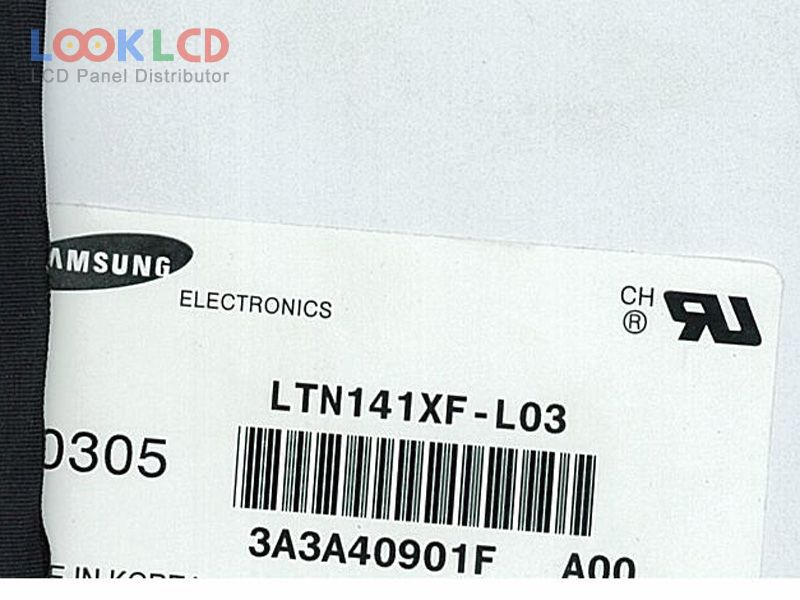

| PartNumber | LTN141XF-L03 |
| Znamka | Samsung |
| Velikost | 14.1 |
| Aplikacija | NBPC |
| Resolucija | 1024×768 |
| Sestava | LCM |
| Svetlost | 150 |
| CR | 250:1 |
| Barve | 262K |
| Osvetlitev ozadja | CCFL |
| Vmesnik | LVDS |
| znamka plošče | SAMSUNG |
| panelni model | LTN141XF-L03 3 Compatible model |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 14.1 inch |
| resolucija | 1024(RGB)×768 , XGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 285.696×214.272 mm |
| oris | 298.5×226.5×5.8 mm |
| slog oblike | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površino | Antiglare (Haze 25%), Hard coating (3H) |
| svetlost | 150 cd/m² (Typ.) |
| kontrastno razmerje | 250:1 (Typ.) |
| barve zaslona | 262K (6-bit) |
| odzivni čas | 10/30 (Typ.)(Tr/Td) |
| vidni kot | 45/45/15/35 (Min.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 1 pcsCCFLWithout Driver |

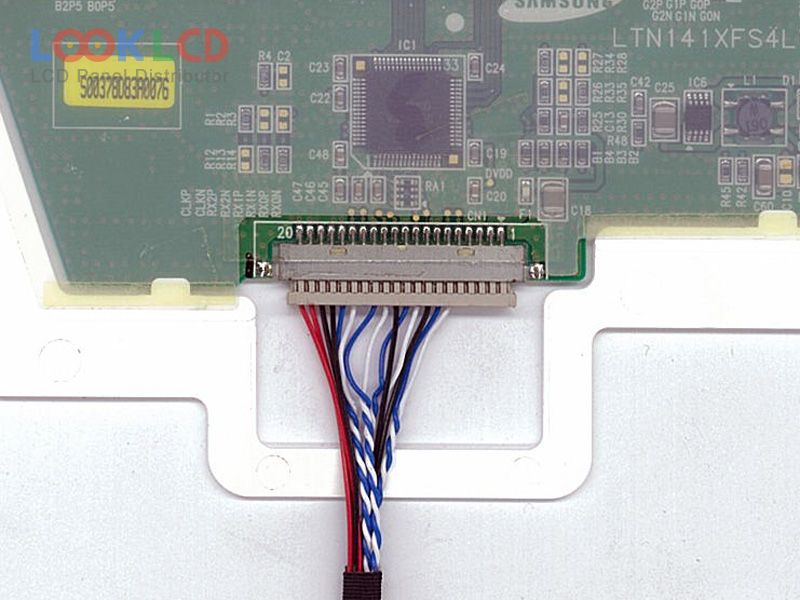

| signalni vmesnik | LVDS (1 ch, 6-bit), 20 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NBPC |
