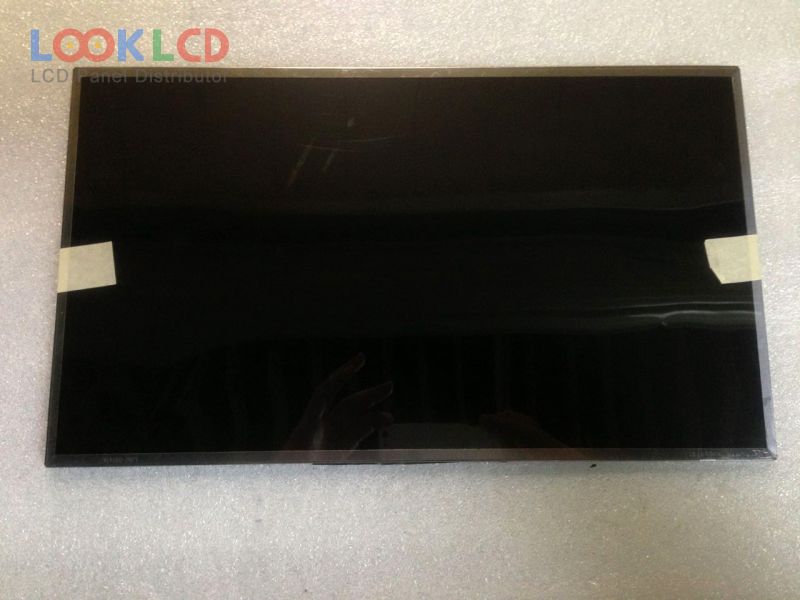

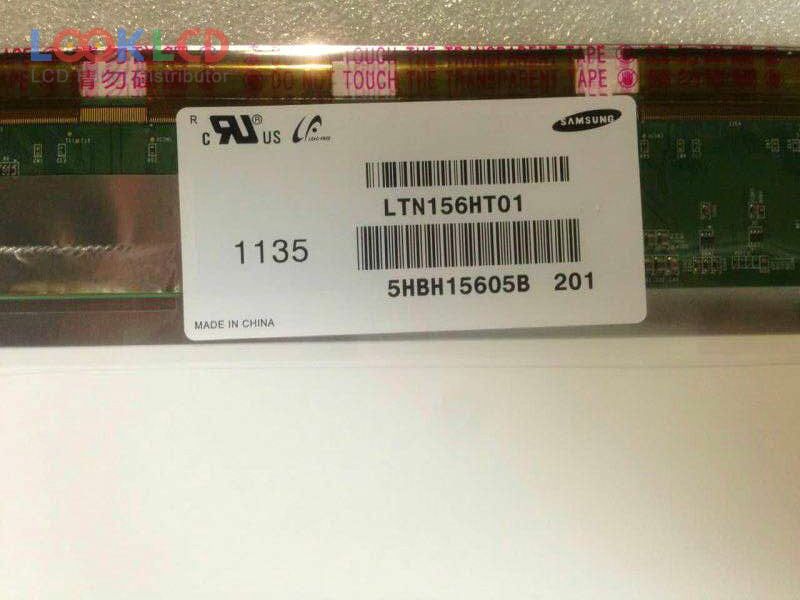

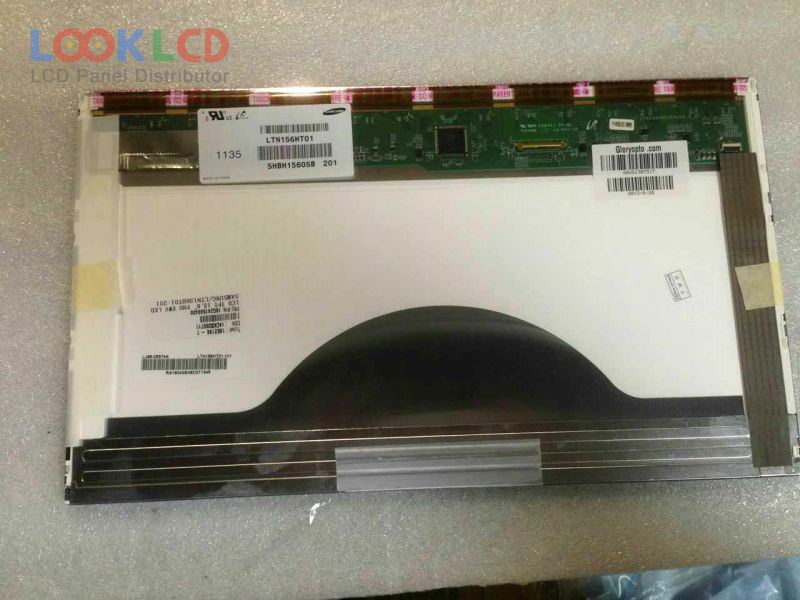

| PartNumber | LTN156HT01-201 |
| Znamka | Samsung |
| Velikost | 15.6 |
| Aplikacija | NBPC |
| Resolucija | 1920×1080 |
| Sestava | LCM |
| Svetlost | 300 |
| CR | 500:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | SAMSUNG |
| panelni model | LTN156HT01-201 20 Compatible model |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 15.6 inch |
| resolucija | 1920(RGB)×1080 , FHD |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 344.16×193.59 mm |
| oris | 359.3×209.5×5.8 mm |
| slog oblike | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površino | Antiglare (Haze 25%), Hard coating (3H) |
| svetlost | 300 cd/m² (Typ.) |
| kontrastno razmerje | 500:1 (Typ.) |
| barve zaslona | 262K (6-bit), CIE193160% |
| odzivni čas | 16 (Typ.)(Tr+Td) |
| vidni kot | 50/50/40/40 (Min.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 8S8PWLEDEmbedded (LED Driver) |
| signalni vmesnik | LVDS (2 ch, 6-bit), 40 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NBPC |
| B156XTN03.2 | AUO | 15.6 | 1366×768 |
| BT156GW01 V.3 | Innolux | 15.6 | 1366×768 |
| LP156WH3-TLA1 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TLB1 | LG Display | 15.6 | 1366×768 |
| LTN156HL01 | Samsung | 15.6 | 1920×1080 |
| LTN156HT01-101 | Samsung | 15.6 | 1920×1080 |
| LTN156HT01-201 | Samsung | 15.6 | 1920×1080 |
| LTN156HT01-B01 | Samsung | 15.6 | 1920×1080 |
| LTN156HT02-B01 | Samsung | 15.6 | 1920×1080 |
| NV156FHM-N42 | BOE | 15.6 | 1920×1080 |
| B141EW04 V5 | AUO | 14.1 | 1280×800 |
| B156HTN04.0 | AUO | 15.6 | 1920×1080 |
| B156HW03 V0 | AUO | 15.6 | 1920×1080 |
| B170PW02 V0 | AUO | 17.0 | 1440×900 |
| LP140WH6-TJA1 | LG Display | 14.0 | 1366×768 |
| LP154WE3-TLA2 | LG Display | 15.4 | 1680×1050 |
| LTD121EA3KZ | TOSHIBA | 12.1 | 1024×768 |
| LTN121AT01-002 | Samsung | 12.1 | 1280×800 |
| LTN140AT07-W01 | Samsung | 14.0 | 1366×768 |
| LTN156AT02-B04 | Samsung | 15.6 | 1366×768 |
