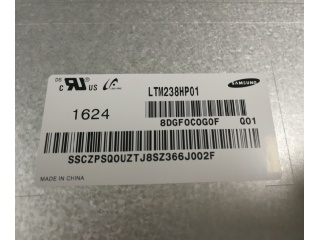

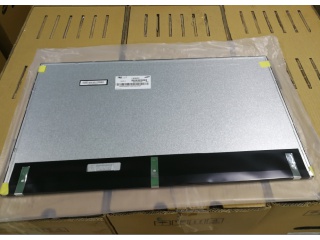

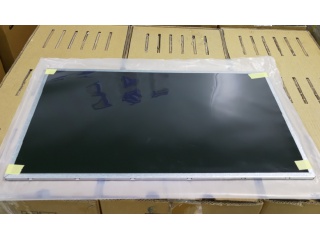

| PartNumber | LTM238HP01 |
| Znamka | SAMSUNG |
| Velikost | 23.8 |
| Aplikacija | Desktop Monitor |
| Resolucija | 1920×1080 |
| Sestava | LCM , a-Si TFT-LCD |
| Svetlost | |
| CR | 3000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| proizvajalec | SAMSUNG |
| ime modela | LTM238HP01 |
| velikost zaslona | 23.8 inch |
| vrsto zaslona | LCM , a-Si TFT-LCD |
| število slikovnih pik | 1920(RGB)×1080 (FHD) 92PPI |
| ureditev | RGB Vertical Stripe |
| aktivna površina (mm) | 527.04 × 296.46 (H×V) |
| obris (mm) | - |
| svetilnost | - |
| kontrastno razmerje | 3000 : 1 (Typ.) (TM) |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10) |
| odgovor | 14 (Typ.)(G to G) ms |
| dober pogled na | Symmetry |
| način dela | PVA, Normally Black, Transmissive |
| barvna globina | 16.7M 72% NTSC |
| osvetlitev ozadja | WLED |
| masa | - |
| uporablja za | Desktop Monitor |
| hitrost osveževanja | 60Hz |
| zaslon na dotik | Without |
| vrsto signala | LVDS (2 ch, 8-bit) , 30 pins Connector |
| napajanje z napetostjo | 5.0V (Typ.) |
| maks. ocene | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
