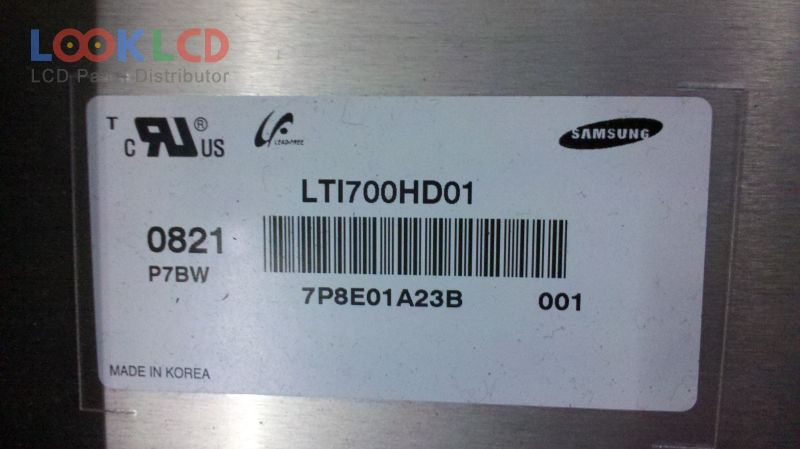

| PartNumber | LTI700HD01-001 |
| Znamka | Samsung |
| Velikost | 70 |
| Aplikacija | PID |
| Resolucija | 1920×1080 |
| Sestava | LCM |
| Svetlost | 600 |
| CR | 1500:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | CCFL |
| Vmesnik | LVDS |
| znamka plošče | SAMSUNG |
| panelni model | LTI700HD01-001 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 70 inch |
| resolucija | 1920(RGB)×1080 , FHD |
| način prikaza | S-PVA, Normally Black, Transmissive |
| aktivno območje | 1549.44×871.56 mm |
| oris | 1630×952 mm |
| površino | Antiglare (Haze 44%), Hard coating (3H) |
| svetlost | 600 cd/m² (Typ.) |
| kontrastno razmerje | 1500:1 (Typ.) |
| barve zaslona | 16.7M (8-bit), CIE193172% |
| odzivni čas | 10/6 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 80 pcsCCFLEmbedded (Inverter) |
| signalni vmesnik | LVDS (2 ch, 8-bit), 51 pins |
| vhodna napetost | 12.0V (Typ.) |
| aplikacija | PID |
