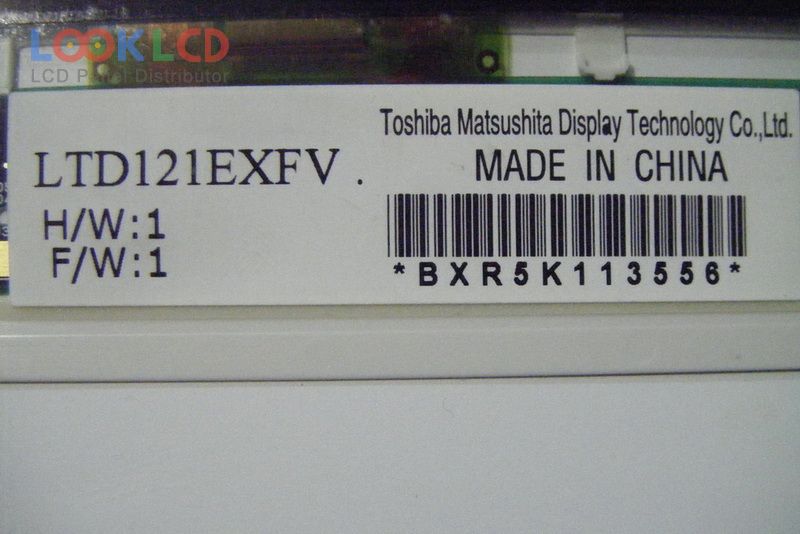

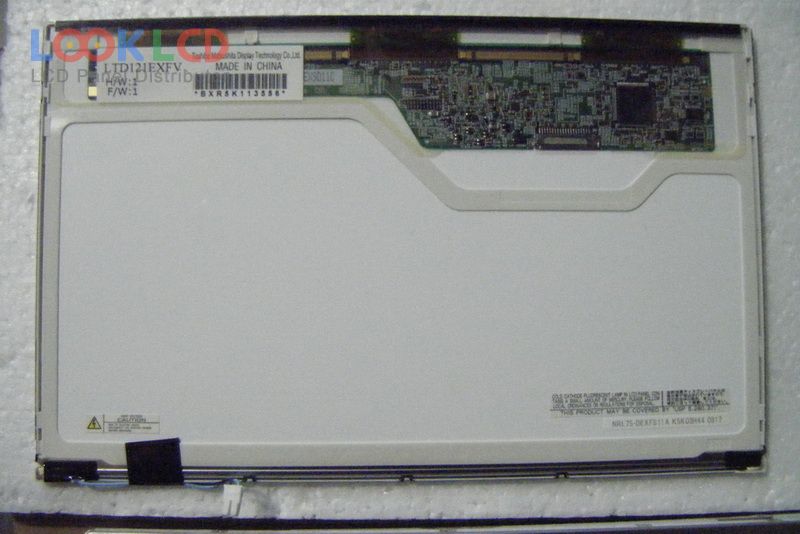

| PartNumber | LTD121EXFV |
| Znamka | TOSHIBA |
| Velikost | 12.1 |
| Aplikacija | NBPC |
| Resolucija | 1280×768 |
| Sestava | LCM |
| Svetlost | 200 |
| CR | 600:1 |
| Barve | 262K |
| Osvetlitev ozadja | CCFL |
| Vmesnik | LVDS |
| znamka plošče | Toshiba Matsushita |
| panelni model | LTD121EXFV 1 Compatible model |
| vrsta plošče | LTPS TFT-LCD , LCM |
| velikost plošče | 12.1 inch |
| resolucija | 1280(RGB)×768 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 263.04×157.824 mm |
| oris | 275×173.5×5.2 mm |
| slog oblike | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površino | Glare (Haze 0%), Hard coating (2H) |
| svetlost | 200 cd/m² (Typ.) |
| kontrastno razmerje | 600:1 (Typ.) |
| barve zaslona | 262K (6-bit) |
| odzivni čas | 50 (Max.)(Tr+Td) |
| vidni kot | 30/30/10/20 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 1 pcsCCFLWithout Driver |
| signalni vmesnik | LVDS (1 ch, 6-bit), 20 pins |
| vhodna napetost | 3.3V (Typ.) |
| rohs: | |
| aplikacija | NBPC |
| LTD121C30S | TOSHIBA | 12.1 | 800×600 |
| LTD121C32S | TOSHIBA | 12.1 | 800×600 |
| LTD121EA4XY | TOSHIBA | 12.1 | 1024×768 |
| LTD121EC5S | TOSHIBA | 12.1 | 1024×768 |
| LTD121EXFV | TOSHIBA | 12.1 | 1280×768 |
| LTD121EXPV | TOSHIBA | 12.1 | 1280×800 |
| LTD121EXSF | TOSHIBA | 12.1 | 1280×800 |
| LTD121KM7K | TOSHIBA | 12.1 | 1400×1050 |
| LTD121KX5V | TOSHIBA | 12.1 | 1280×800 |
| LTD121LA3SG-201 | TOSHIBA | 12.1 | 1024×768 |
| B133XW07 V0 | AUO | 13.3 | 1366×768 |
| B156XW01 V0 | AUO | 15.6 | 1366×768 |
| LP140WH4-TLP1 | LG Display | 14.0 | 1366×768 |
| LP141WX5-TLA1 | LG Display | 14.1 | 1280×800 |
| LT121DEE3P00 | TOSHIBA | 12.1 | 1024×768 |
| LTN133AT05-001 | Samsung | 13.3 | 1280×800 |
| LTN156AT02-D04 | Samsung | 15.6 | 1366×768 |
| N140B6-L06 | Innolux | 14.0 | 1366×768 |
| N156BGE-L41 | Innolux | 15.6 | 1366×768 |
| NV156FHM-N43 | BOE | 15.6 | 1920×1080 |
