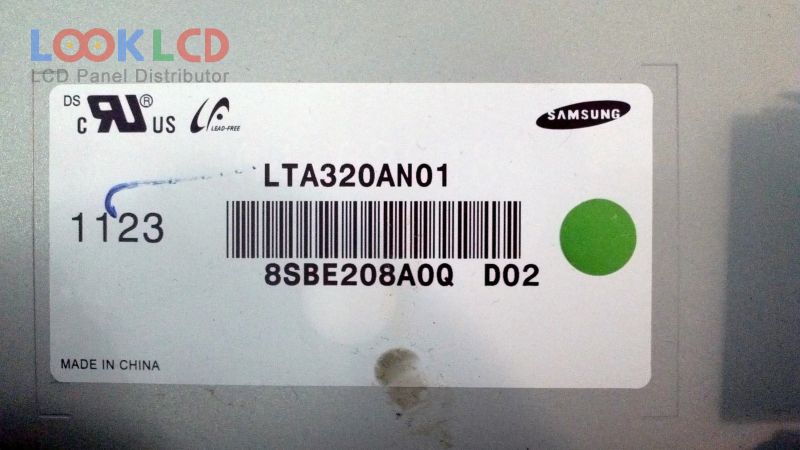

| PartNumber | LTA320AN01-D |
| Znamka | Samsung |
| Velikost | 31.5 |
| Aplikacija | LCTV |
| Resolucija | 1366×768 |
| Sestava | LCM |
| Svetlost | 350 |
| CR | 4000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | SAMSUNG |
| panelni model | LTA320AN01-D |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 31.5 inch |
| resolucija | 1366×768(RGB) , WXGA |
| način prikaza | PVA, Normally Black, Transmissive |
| aktivno območje | 697.685×392.256 mm |
| oris | 734.4×430.3 mm |
| površino | Antiglare (Haze 7%), Hard coating (3H) |
| svetlost | 350 cd/m² (Typ.) |
| kontrastno razmerje | 4000:1 (Typ.) |
| barve zaslona | 16.7M (8-bit), CIE193168% |
| odzivni čas | 20 (Typ.)(G to G) |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | WLEDEmbedded (LED Driver) |
| signalni vmesnik | LVDS (1 ch, 8-bit), 30 pins |
| vhodna napetost | 12.0V (Typ.) |
| aplikacija | LCTV |
