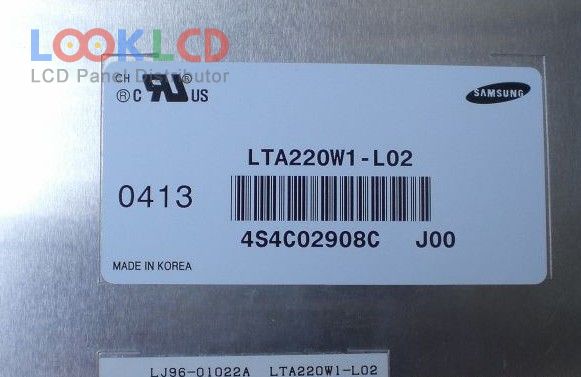

| PartNumber | LTA220W1-L02 |
| Znamka | Samsung |
| Velikost | 22.0 |
| Aplikacija | LCTV |
| Resolucija | 1280×720 |
| Sestava | LCM |
| Svetlost | 450 |
| CR | 500:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | CCFL |
| Vmesnik | LVDS |
| znamka plošče | SAMSUNG |
| panelni model | LTA220W1-L02 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 22.0 inch |
| resolucija | 1280(RGB)×720 , WXGA |
| način prikaza | PVA, Normally Black, Transmissive |
| aktivno območje | 487.58×274.32 mm |
| oris | 525.6×307.9 mm |
| površino | Antiglare (Haze 44%), Hard coating (3H) |
| svetlost | 450 cd/m² (Typ.) |
| kontrastno razmerje | 500:1 (Typ.) |
| barve zaslona | 16.7M (8-bit) |
| odzivni čas | 15/8 (Typ.)(Tr/Td) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 8 pcsCCFLEmbedded (Inverter) |
| signalni vmesnik | LVDS (1 ch, 8-bit), 20 pins |
| vhodna napetost | 5.0V (Typ.) |
| aplikacija | LCTV |
