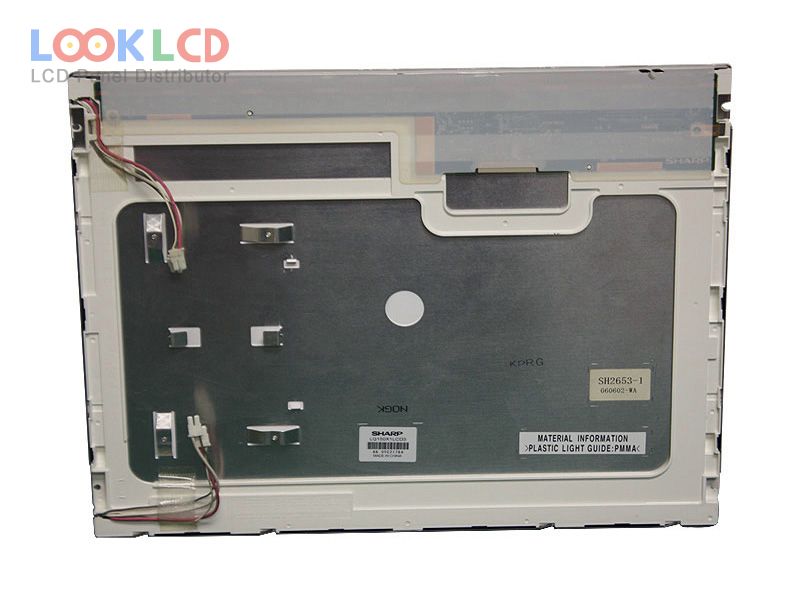

| PartNumber | LQ150X1LCD3 |
| Znamka | SHARP |
| Velikost | 15.0 |
| Aplikacija | DMPC |
| Resolucija | 1024×768 |
| Sestava | LCM |
| Svetlost | 400 |
| CR | 400:1 |
| Barve | 16.2M |
| Osvetlitev ozadja | CCFL |
| Vmesnik | LVDS |
| znamka plošče | SHARP |
| panelni model | LQ150X1LCD3 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 15.0 inch |
| resolucija | 1024(RGB)×768 , XGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 304.1×228.1 mm |
| oris | 331.6×254.8×32.35 mm |
| površino | Hard coating (2H) |
| svetlost | 400 cd/m² (Typ.) |
| kontrastno razmerje | 400:1 (Typ.) |
| barve zaslona | 16.2M (6-bit + FRC) |
| odzivni čas | 25 (Typ.)(Tr+Td) |
| vidni kot | 60/60/45/55 (Typ.)(CR≥10)(L/R/U/D) |
| tip svetilke | 4 pcsCCFLEmbedded (Inverter) |
| signalni vmesnik | LVDS (1 ch, 8-bit), 20 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | DMPC |
