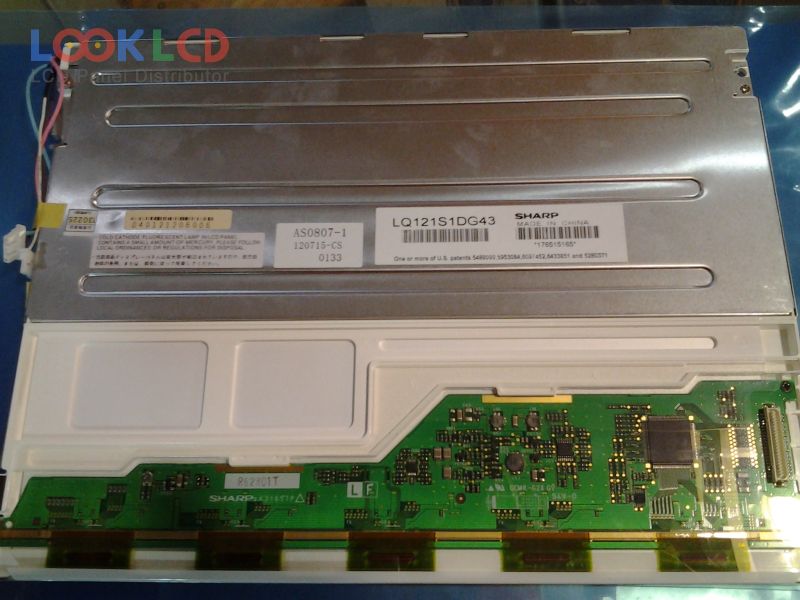

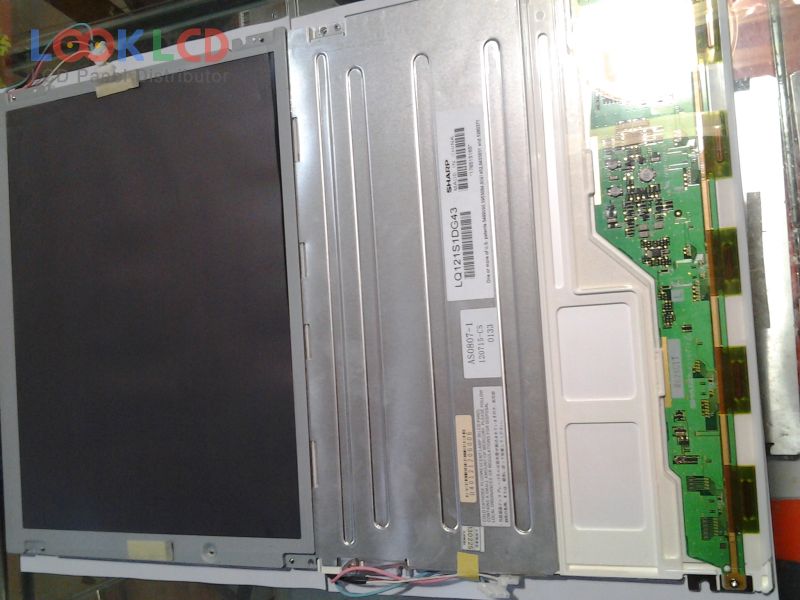

| PartNumber | LQ121S1DG43 |
| Znamka | SHARP |
| Velikost | 12.1 |
| Aplikacija | IA |
| Resolucija | 800×600 |
| Sestava | LCM |
| Svetlost | 370 |
| CR | 450:1 |
| Barve | 262K |
| Osvetlitev ozadja | CCFL |
| Vmesnik | TTL |
| znamka plošče | SHARP |
| panelni model | LQ121S1DG43 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 12.1 inch |
| resolucija | 800(RGB)×600 , SVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 246×184.5 mm |
| oris | 276×209×11 mm |
| površino | Antiglare, Hard coating (3H) |
| svetlost | 370 cd/m² (Typ.) |
| kontrastno razmerje | 450:1 (Typ.) |
| barve zaslona | 262K (6-bit) |
| odzivni čas | 10/25 (Typ.)(Tr/Td) |
| vidni kot | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| tip svetilke | 2 pcsCCFLWithout Driver |
| signalni vmesnik | Parallel RGB (1 ch, 6-bit), 41 pins |
| vhodna napetost | 3.3/5.0V (Typ.)(VCC) |
| aplikacija | IA |
