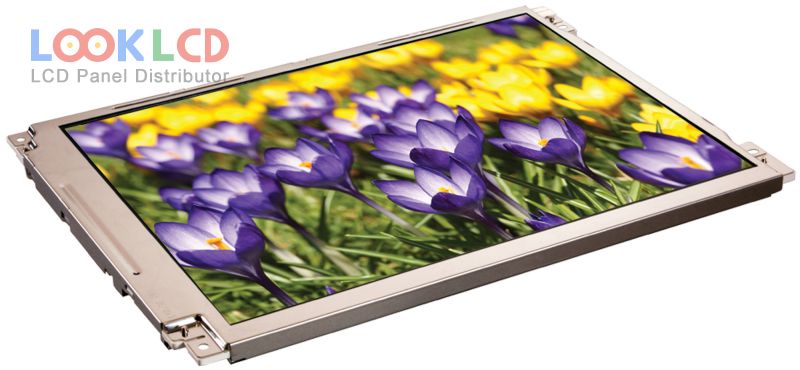

| PartNumber | LQ104V1DG62 |
| Znamka | SHARP |
| Velikost | 10.4 |
| Aplikacija | IA |
| Resolucija | 640×480 |
| Sestava | LCM |
| Svetlost | 450 |
| CR | 600:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | TTL |
| znamka plošče | SHARP |
| panelni model | LQ104V1DG62 1 Compatible model |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 10.4 inch |
| resolucija | 640(RGB)×480 , VGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 211.2×158.4 mm |
| oris | 246.5×179.4×12.5 mm |
| površino | Antiglare, Hard coating (3H), Antireflection |
| svetlost | 450 cd/m² (Typ.) |
| kontrastno razmerje | 600:1 (Typ.) |
| barve zaslona | 262K (6-bit), CIE193140% |
| odzivni čas | 10/25 (Typ.)(Tr/Td) |
| vidni kot | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 7S3PWLEDWithout Driver |
| signalni vmesnik | Parallel RGB (1 ch, 6-bit), 31 pins |
| vhodna napetost | 3.3/5.0V (Typ.)(VCC) |
| aplikacija | IA |
| LQ104S1DG61 | SHARP | 10.4 | 800×600 |
| LQ104S1LG31 | SHARP | 10.4 | 800×600 |
| LQ104V1DG51 | SHARP | 10.4 | 640×480 |
| LQ104V1DG61 | SHARP | 10.4 | 640×480 |
| LQ104V1DG71 | SHARP | 10.4 | 640×480 |
| LQ104V1DG72 | SHARP | 10.4 | 640×480 |
| LQ104V1DG81 | SHARP | 10.4 | 640×480 |
| LQ104V1LG81 | SHARP | 10.4 | 640×480 |
| LQ104V1LG92 | SHARP | 10.4 | 640×480 |
| LQ104X2LX05A | SHARP | 10.4 | 1024×768 |
| G104SN02 V0 | AUO | 10.4 | 800×600 |
| G190EG01 V0 | AUO | 19.0 | 1280×1024 |
| KG057QV1CA-G04 | Kyocera | 5.7 | 320×240 |
| LJ640U21 | SHARP | 7.9 | 640×200 |
| LTA090B230F | TOSHIBA | 9.0 | 536×328 |
| MXS121022010 | SANYO | 12.1 | 800×600 |
| NL6448AC33-15 | NLT | 10.4 | 640×480 |
| NL6448BC18-03F | NLT | 5.7 | 640×480 |
| OEL9M0078-W-E | Other | 1.45 | 132×16 |
| UG-2832TSWGG01 | WiseChip | 1.0 | 128×32 |
