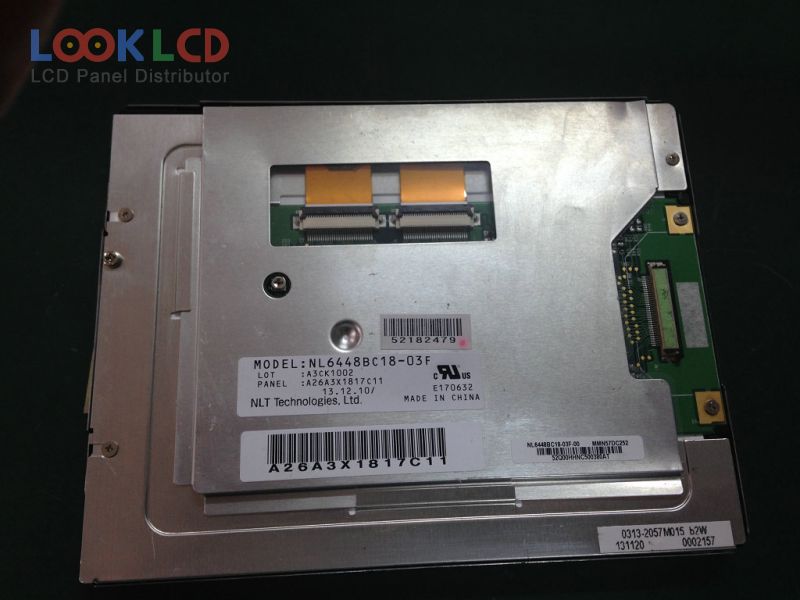

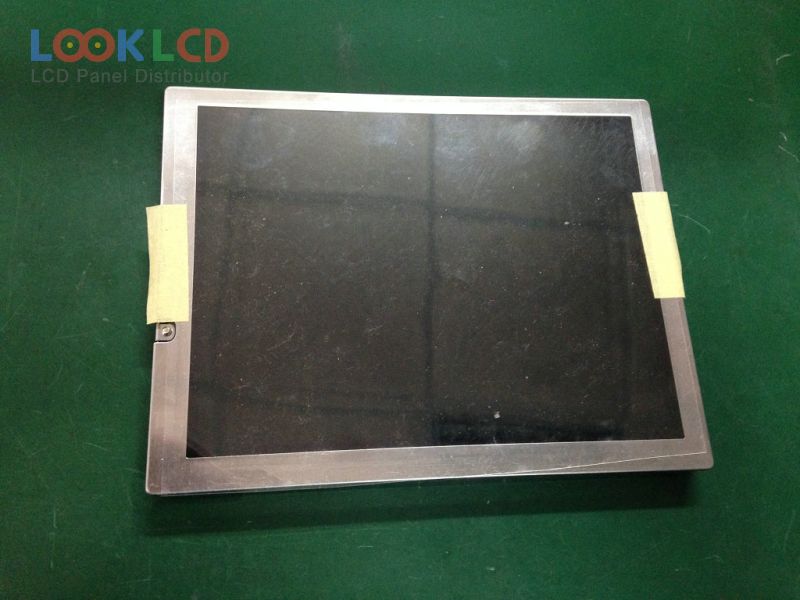

| PartNumber | NL6448BC18-03F |
| Znamka | NLT |
| Velikost | 5.7 |
| Aplikacija | IA |
| Resolucija | 640×480 |
| Sestava | LCM |
| Svetlost | 800 |
| CR | 850:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | TTL |
| znamka plošče | NEC |
| panelni model | NL6448BC18-03F 1 Compatible model |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 5.7 inch |
| resolucija | 640(RGB)×480 , VGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 116.16×87.12 mm |
| oris | 135×104.6×10.9 mm |
| površino | Clear, Hard coating (3H) |
| svetlost | 800 cd/m² (Typ.) |
| kontrastno razmerje | 850:1 (Typ.) |
| barve zaslona | 262K (6-bit), CIE193160% |
| odzivni čas | 3/15 (Typ.)(Tr/Td) |
| vidni kot | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 9S2P×2CNWLEDWithout Driver |
| signalni vmesnik | CMOS (1 ch, 6-bit), 33 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | IA |
