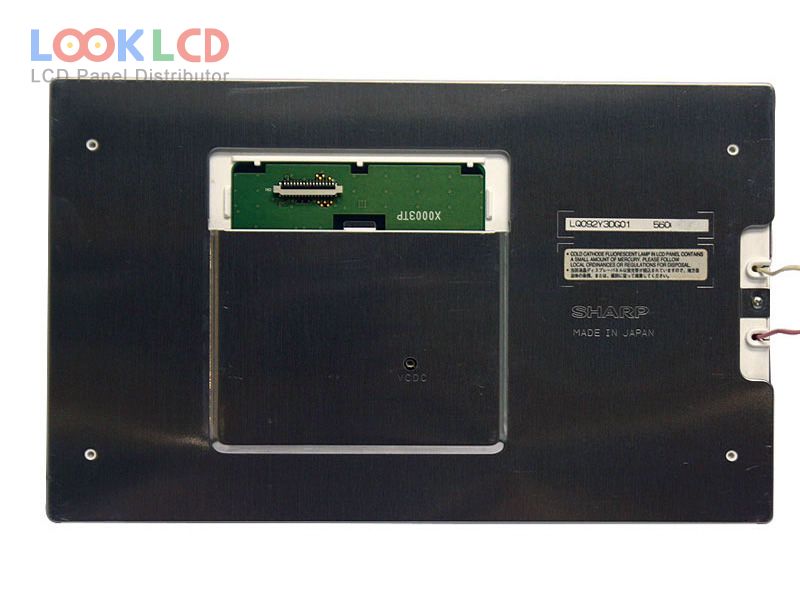

| PartNumber | LQ092Y3DG01 |
| Znamka | SHARP |
| Velikost | 9.2 |
| Aplikacija | |
| Resolucija | 800×480 |
| Sestava | LCM |
| Svetlost | 380 |
| CR | 250:1 |
| Barve | 262K |
| Osvetlitev ozadja | CCFL |
| Vmesnik | TTL |
| znamka plošče | SHARP |
| panelni model | LQ092Y3DG01 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 9.2 inch |
| resolucija | 800(RGB)×480 , WVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 200.4×120.2 mm |
| oris | 226.6×143.9 mm |
| površino | |
| svetlost | 380 cd/m² (Typ.) |
| kontrastno razmerje | 250:1 (Typ.) |
| barve zaslona | 262K (6-bit) |
| odzivni čas | 30/50 (Typ.)(Tr/Td) |
| vidni kot | 65/65/55/65 (Typ.)(CR≥5)(L/R/U/D) |
| tip svetilke | 1 pcsCCFL |
| signalni vmesnik | Parallel RGB (1 ch, 6-bit), 32 pins |
| vhodna napetost | 5.0V (Typ.)(VCC) |
| rohs: |
