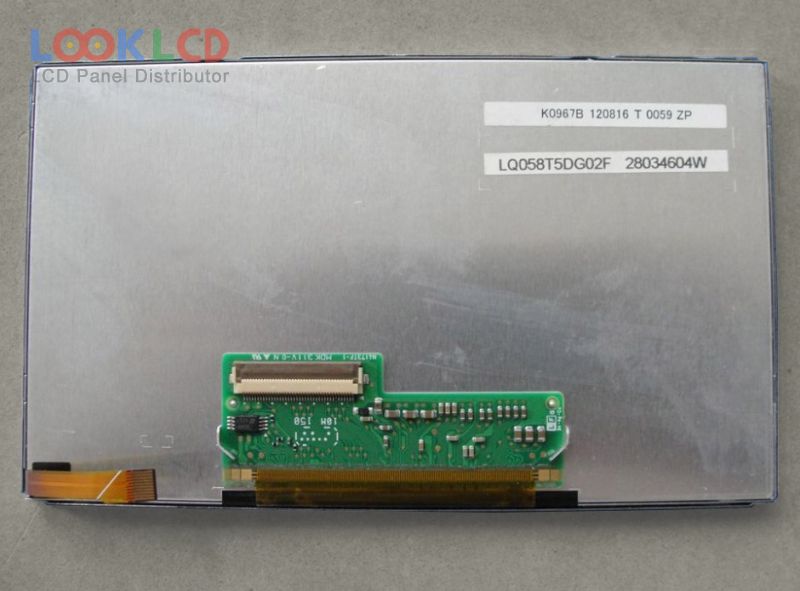

| PartNumber | LQ058T5DG02F |
| Znamka | SHARP |
| Velikost | 5.8 |
| Aplikacija | CNS |
| Resolucija | 480×240 |
| Sestava | LCM |
| Svetlost | 420 |
| CR | |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | TTL |
| znamka plošče | SHARP |
| panelni model | LQ058T5DG02F |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 5.8 inch |
| resolucija | 480(RGB)×240 , WQVGA |
| način prikaza | Transmissive |
| aktivno območje | 128.4×70.92 mm |
| oris | 139×82.7 mm |
| površino | |
| svetlost | 420 cd/m² (Typ.) |
| kontrastno razmerje | |
| barve zaslona | 262K (6-bit) |
| odzivni čas | |
| vidni kot | |
| tip svetilke | WLED |
| signalni vmesnik | Parallel RGB (1 ch, 6-bit) |
| rohs: | |
| aplikacija | CNS |
