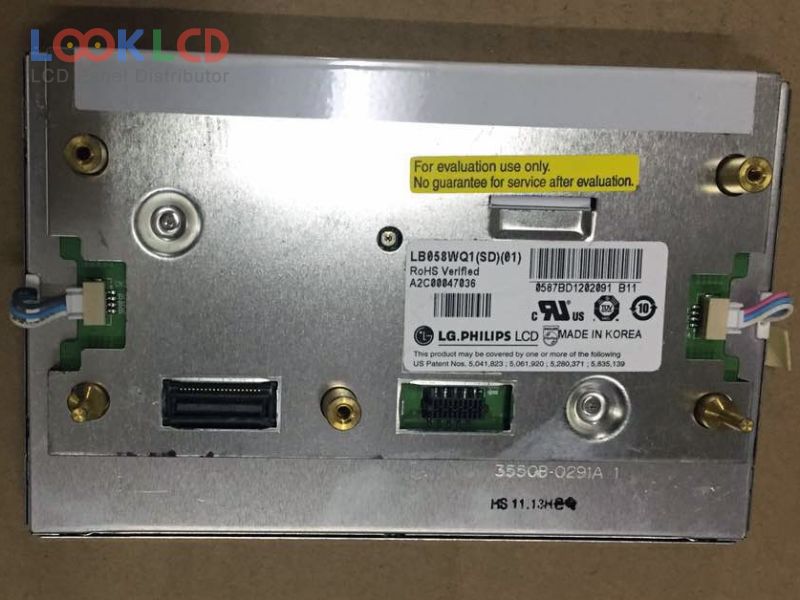

| PartNumber | LB058WQ1-SD01 |
| Znamka | LG Display |
| Velikost | 5.8 |
| Aplikacija | CNS |
| Resolucija | 400×240 |
| Sestava | LCM |
| Svetlost | 470 |
| CR | 630:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | TTL |
| znamka plošče | LG Display |
| panelni model | LB058WQ1-SD01 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 5.8 inch |
| resolucija | 400(RGB)×240 , WQVGA |
| način prikaza | IPS, Normally Black, Transmissive |
| aktivno območje | 126.36×75.84 mm |
| oris | 152×97 mm |
| površino | Antiglare, Antireflection |
| svetlost | 470 cd/m² (Min.) |
| kontrastno razmerje | 630:1 (Min.) |
| barve zaslona | 262K (6-bit), CIE193160% |
| odzivni čas | 15/14 (Typ.)(Tr/Td) |
| vidni kot | 70/70/30/40 (Typ.)(CR≥100)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 6S3PWLEDWithout Driver |
| signalni vmesnik | Parallel RGB (1 ch, 6-bit), 40 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | CNS |
