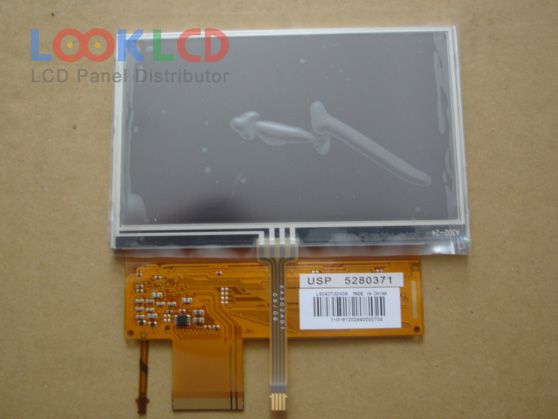

| PartNumber | LQ043T3DX0A |
| Znamka | SHARP |
| Velikost | 4.3 |
| Aplikacija | PND |
| Resolucija | 480×272 |
| Sestava | LCM |
| Svetlost | 250 |
| CR | 400:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | TTL |
| znamka plošče | SHARP |
| panelni model | LQ043T3DX0A |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 4.3 inch |
| resolucija | 480(RGB)×272 , WQVGA |
| način prikaza | ASV, Normally Black, Transmissive |
| aktivno območje | 95.04×53.856 mm |
| oris | 105.5×67.2 mm |
| površino | Hard coating (3H) |
| svetlost | 250 cd/m² (Typ.) |
| kontrastno razmerje | 400:1 (Typ.) |
| barve zaslona | 16.7M (8-bit) |
| odzivni čas | 30/30 (Typ.)(Tr/Td) |
| vidni kot | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 7S1PWLEDWithout Driver |
| signalni vmesnik | Parallel RGB (1 ch, 8-bit), 40 pins |
| vhodna napetost | 2.5/5.0V (Typ.)(VCC/AVDD) |
| aplikacija | PND |
