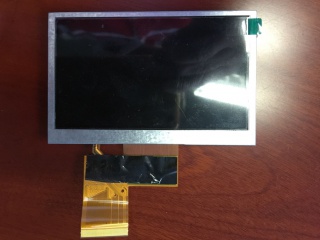

| PartNumber | LQ043T1DG59 |
| Znamka | Sharp |
| Velikost | 4.3 |
| Aplikacija | Industrial Handheld |
| Resolucija | 480×272 |
| Sestava | a-Si TFT-LCD , LCM |
| Svetlost | |
| CR | 500:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | 9S1P |
| Vmesnik | |
| znamka plošče | Sharp |
| velikost plošče | 4.3" |
| resolucija | 480(RGB)×272, WQVGA, 128PPI |
| prikazno območje | 95.04(W)×53.856(H) mm |
| velikost obrisa | 105.5(W)×67.2(H) ×3.1(D) mm |
| svetlost | 500 cd/m² (Typ.) |
| vidni kot | 65/65/50/55 (Typ.)(CR≥10) |
| najboljši pogled na | 6 o'clock |
| barve zaslona | 16.7M 42% NTSC |
| pogostost | 60Hz |
| utež | TBD |
| panelni model | LQ043T1DG59 1 Compatible |
| vrsta plošče | a-Si TFT-LCD , LCM |
| slikovnih pik | RGB Vertical Stripe |
| odprtina okvirja | 100.8(W)×57.5(H) mm |
| površino | Antiglare, Hard coating (2H) |
| kontrastno razmerje | 500:1 (Typ.) (TM) |
| način prikaza | TN, Normally White, Transmissive |
| odzivni čas | 16 (Typ.)(Tr+Td) |
| tip svetilke | 9S1P WLED , 15K hours , Without Driver |
| zaslon na dotik | Without |
| aplikacija | Industrial Handheld & PDA |
| LQ043T1DG01 | SHARP | 4.3 | 480×272 |
| LQ043T1DG02 | SHARP | 4.3 | 480×272 |
| LQ043T1DG03B | SHARP | 4.3 | 480×272 |
| LQ043T1DH01 | SHARP | 4.3 | 480×272 |
| LQ043T3DX03A | SHARP | 4.3 | 480×272 |
| LQ043T3DX04 | SHARP | 4.3 | 480×272 |
| LQ043T3DX0A | SHARP | 4.3 | 480×272 |
| LQ043T3LX02 | SHARP | 4.3 | 480×272 |
| LQ043Y1DX02 | SHARP | 4.3 | 480×800 |
| LQ043Y1DX03D | SHARP | 4.3 | 480×800 |
