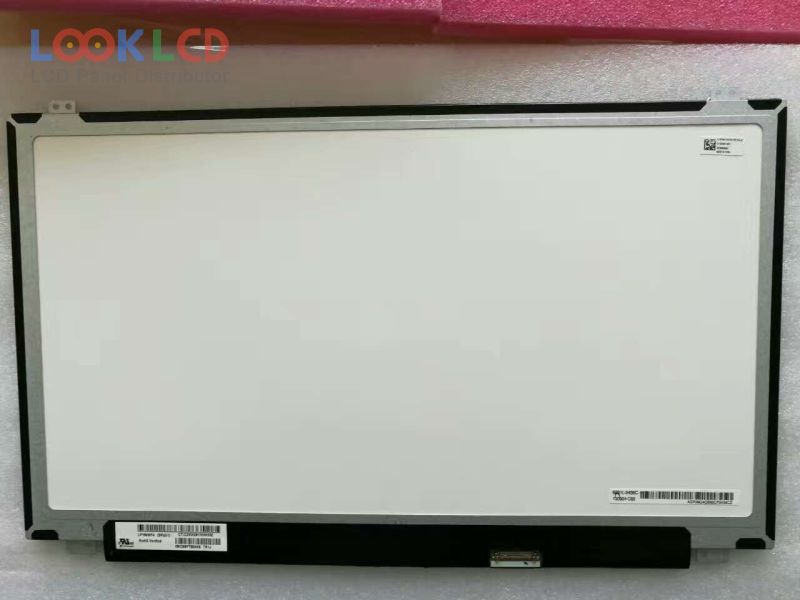

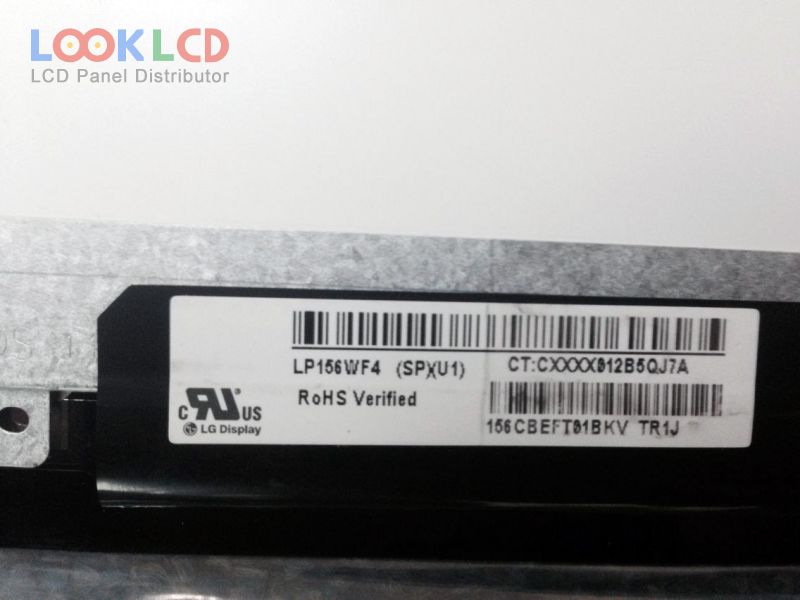

| PartNumber | LP156WF4-SPU1 |
| Znamka | LG Display |
| Velikost | 15.6 |
| Aplikacija | NBPC |
| Resolucija | 1920×1080 |
| Sestava | LCM |
| Svetlost | 330 |
| CR | 700:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | eDP |
| znamka plošče | LG Display |
| panelni model | LP156WF4-SPU1 18 Compatible model |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 15.6 inch |
| resolucija | 1920(RGB)×1080 , FHD |
| način prikaza | AH-IPS, Normally Black, Transmissive |
| aktivno območje | 344.16×193.59 mm |
| oris | 359.5×223.8×3.2 mm |
| slog oblike | Slim (PCBA Flat, Depth ≤3.2mm) |
| površino | Glare (Haze 0%) |
| svetlost | 330 cd/m² (Typ.) |
| kontrastno razmerje | 700:1 (Typ.) |
| barve zaslona | 262K (6-bit), CIE193176% |
| odzivni čas | 35 (Typ.)(Tr+Td) |
| vidni kot | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | WLEDEmbedded (LED Driver) |
| signalni vmesnik | eDP (2 Lanes), 30 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NBPC |
