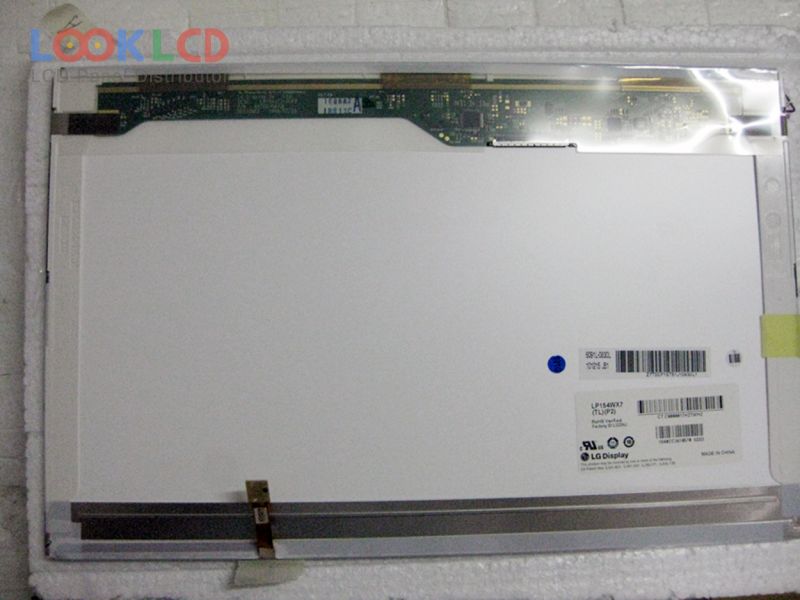

| PartNumber | LP154WX7-TLP2 |
| Znamka | LG Display |
| Velikost | 15.4 |
| Aplikacija | NBPC |
| Resolucija | 1280×800 |
| Sestava | LCM |
| Svetlost | 220 |
| CR | 500:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | LG Display |
| panelni model | LP154WX7-TLP2 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 15.4 inch |
| resolucija | 1280(RGB)×800 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 331.2×207 mm |
| oris | 344×222×6.5 mm |
| slog oblike | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površino | Antiglare |
| svetlost | 220 cd/m² (Typ.) |
| kontrastno razmerje | 500:1 (Typ.) |
| barve zaslona | 262K (6-bit), CIE193145% |
| odzivni čas | 16 (Typ.)(Tr+Td) |
| vidni kot | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 7S6PWLEDWithout Driver |
| signalni vmesnik | LVDS (1 ch, 6-bit), 30 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NBPC |
| LP154W01-TLF1 | LG Display | 15.4 | 1280×800 |
| LP154W02-TL06 | LG Display | 15.4 | 1680×1050 |
| LP154WP2-TLA1 | LG Display | 15.4 | 1440×900 |
| LP154WP2-TLA2 | LG Display | 15.4 | 1440×900 |
| LP154WP4-TLB1 | LG Display | 15.4 | 1440×900 |
| LP154WU1-TLB1 | LG Display | 15.4 | 1920×1200 |
| LP154WX4-TLB2 | LG Display | 15.4 | 1280×800 |
| LP154WX4-TLC3 | LG Display | 15.4 | 1280×800 |
| LP154WX7-TLB1 | LG Display | 15.4 | 1280×800 |
| LP154WX7-TLB3 | LG Display | 15.4 | 1280×800 |
| CLAA184FP01 | CPT | 18.4 | 1920×1080 |
| LP133WX2-TLG1 | LG Display | 13.3 | 1280×800 |
| LP140WH4-TLB1 | LG Display | 14.0 | 1366×768 |
| LP154W01-TLAE | LG Display | 15.4 | 1280×800 |
| LP156WH2-TLG1 | LG Display | 15.6 | 1366×768 |
| LTN160AT02-002 | Samsung | 16.0 | 1366×768 |
| LTN160HT02-001 | Samsung | 16.0 | 1920×1080 |
| N133BGE-EB1 | Innolux | 13.3 | 1366×768 |
| N140BGE-L21 | Innolux | 14.0 | 1366×768 |
| N154I6-L03 | Innolux | 15.4 | 1280×800 |
