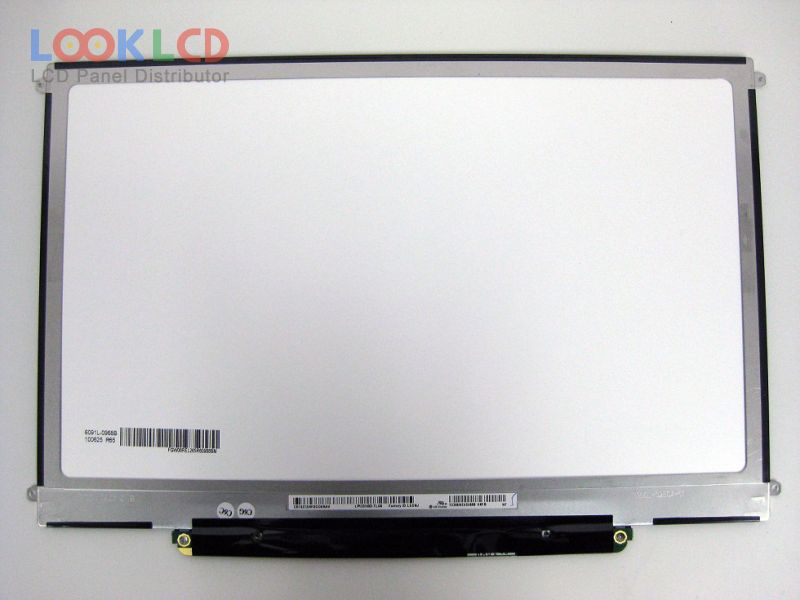

| PartNumber | LP133WX2-TLG6 |
| Znamka | LG Display |
| Velikost | 13.3 |
| Aplikacija | NBPC |
| Resolucija | 1280×800 |
| Sestava | LCM |
| Svetlost | 275 |
| CR | 600:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | LG.Philips LCD |
| panelni model | LP133WX2-TLG6 6 Compatible model |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 13.3 inch |
| resolucija | 1280(RGB)×800 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 286.08×178.8 mm |
| oris | 297.15×192.15×3.68 mm |
| slog oblike | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| površino | Glare (Haze 0%), Hard coating (2H), Antireflection |
| svetlost | 275 cd/m² (Typ.) |
| kontrastno razmerje | 600:1 (Typ.) |
| barve zaslona | 262K (6-bit) |
| odzivni čas | 16 (Typ.)(Tr+Td) |
| vidni kot | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 9S6PWLEDWithout Driver |
| signalni vmesnik | LVDS (1 ch, 6-bit), 30 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NBPC |
