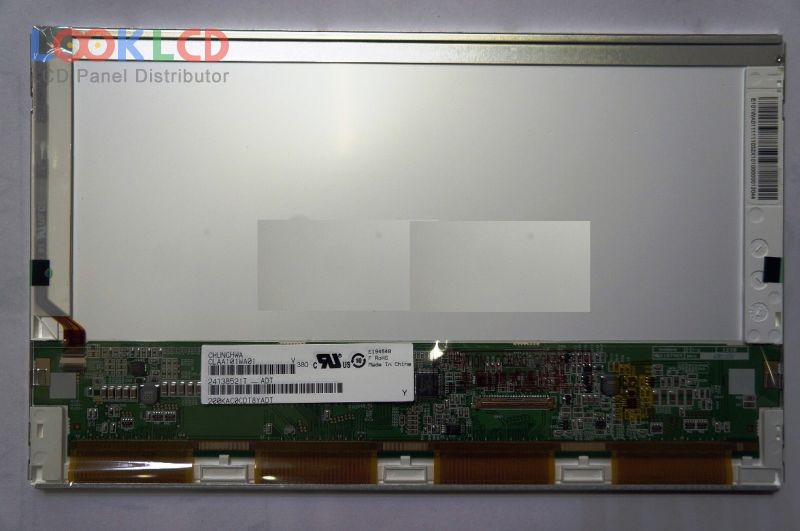

| PartNumber | CLAA101WA01 |
| Znamka | CPT |
| Velikost | 10.1 |
| Aplikacija | NBPC |
| Resolucija | 1366×768 |
| Sestava | LCM |
| Svetlost | 230 |
| CR | 500:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | CPT |
| panelni model | CLAA101WA01 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 10.1 inch |
| resolucija | 1366(RGB)×768 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 222.72×125.22 mm |
| oris | 235×143×5.2 mm |
| slog oblike | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površino | Antiglare, Hard coating (3H) |
| svetlost | 230 cd/m² (Typ.) |
| kontrastno razmerje | 500:1 (Typ.) |
| barve zaslona | 262K (6-bit), CIE193158% |
| odzivni čas | 16 (Typ.)(Tr+Td) |
| vidni kot | 40/40/15/30 (Min.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | WLEDEmbedded (LED Driver) |
| signalni vmesnik | LVDS (1 ch, 6-bit), 40 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NBPC |
| CLAA101FP05 XG | CPT | 10.1 | 1920×1200 |
| CLAA102NC01CW | CPT | 10.2 | 1024×600 |
| CLAA104XA12BW | CPT | 10.4 | 1024×768 |
| CLAA140WA01 | CPT | 14.0 | 1280×768 |
| CLAA140WB01A | CPT | 14.0 | 1366×768 |
| CLAA140WB11A | CPT | 14.0 | 1366×768 |
| CLAA150XM05 | CPT | 15.0 | 1024×768 |
| CLAA154WB04N | CPT | 15.4 | 1280×800 |
| CLAA154WB08AN | CPT | 15.4 | 1280×800 |
| CLAA170EA07 | CPT | 17.0 | 1280×1024 |
| B141EW03 V3 | AUO | 14.1 | 1280×800 |
| HB140WX1-200 | BOE | 14.0 | 1366×768 |
| HSD173PUW1-A | HannStar | 17.3 | 1920×1080 |
| LP156WF1-TPB1 | LG Display | 15.6 | 1920×1080 |
| LTN121AP03-002 | Samsung | 12.1 | 1280×800 |
| LTN133AT15-G01 | Samsung | 13.3 | 1280×800 |
| LTN156AT05-J08 | Samsung | 15.6 | 1366×768 |
| N116HSE-EBC | Innolux | 11.6 | 1920×1080 |
| NL8060BC26-15 | NLT | 10.4 | 800×600 |
| VVX13F009G10 | Panasonic | 13.3 | 1920×1080 |
