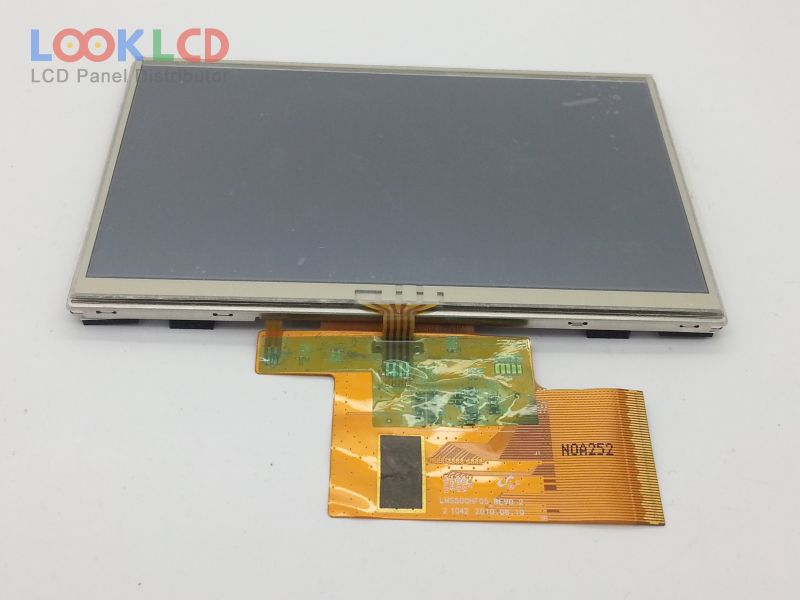

| PartNumber | LMS500HF01 |
| Znamka | Samsung |
| Velikost | 5.0 |
| Aplikacija | PND |
| Resolucija | 480×272 |
| Sestava | LCM |
| Svetlost | 400 |
| CR | 800:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | TTL |
| znamka plošče | SAMSUNG SMD |
| panelni model | LMS500HF01 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 5.0 inch |
| resolucija | 480×272(RGB) , WQVGA |
| način prikaza | VA, Normally Black, TMR |
| aktivno območje | 110.88×62.832 mm |
| oris | 120.7×75.8×4.45 mm |
| površino | |
| svetlost | 400 cd/m² (Typ.) |
| kontrastno razmerje | 800 : 1 (Typ.) |
| barve zaslona | 16.7M (8-bit) |
| odzivni čas | 17/15 (Typ.)(Tr/Td) |
| vidni kot | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 7S2PWLEDWithout Driver |
| signalni vmesnik | Parallel RGB (1 ch, 8-bit), 50 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | PND |
| CLAN050LL31 1XG | CPT | 5.0 | 480×800 |
| LMS500HF01 | Samsung | 5.0 | 480×272 |
| LMS500HF04-002 | Samsung | 5.0 | 480×272 |
| LMS500HF05 | Samsung | 5.0 | 480×272 |
| LMS500HF06 | Samsung | 5.0 | 480×272 |
| LMS500HF07 | Samsung | 5.0 | 480×272 |
| LMS500HF13-002 | Samsung | 5.0 | 480×272 |
| LMS500HF13-003 | Samsung | 5.0 | 480×272 |
| LMS501KF03 | Samsung | 5.0 | 480×800 |
| A050FW03 V0 | AUO | 5.0 | 480×272 |
| AT043TN13 TP | Innolux | 4.3 | 480×272 |
| AT043TN24 V.7 | Innolux | 4.3 | 480×272 |
| AT050TN33 | Innolux | 5.0 | 480×272 |
| EJ050NA-01G | Innolux | 5.0 | 800×480 |
| LB035Q04-TD08 | LG Display | 3.5 | 320×240 |
| LMS500HF07 | Samsung | 5.0 | 480×272 |
| LQ043T1DG01 | SHARP | 4.3 | 480×272 |
| LQ043T3DX0A | SHARP | 4.3 | 480×272 |
| TS047NAARB01-00 | Tianma | 4.7 | 480×272 |
