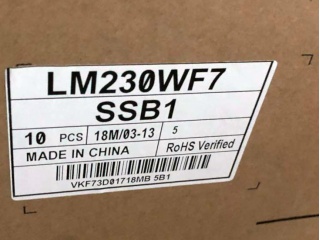

| PartNumber | LM230WF7-SSB1 |
| Znamka | LG Display |
| Velikost | 23.0 |
| Aplikacija | Desktop Monitor |
| Resolucija | 1920×1080 |
| Sestava | LCM , a-Si TFT-LCD |
| Svetlost | |
| CR | 1000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | 14S4P |
| Vmesnik | LVDS |
| proizvajalec | LG Display |
| ime modela | LM230WF7-SSB1 |
| velikost zaslona | 23.0 inch |
| vrsto zaslona | LCM , a-Si TFT-LCD |
| število slikovnih pik | 1920(RGB)×1080 (FHD) 95PPI |
| ureditev | RGB Vertical Stripe |
| aktivna površina (mm) | 509.184 × 286.416 (H×V) |
| obris (mm) | 517.2 × 302.8 × 12.7 (H×V×D) |
| površina okvirja (mm) | - |
| zdravljenje | Antiglare, Hard coating (3H) |
| svetilnost | 250 cd/m² (Typ.) |
| kontrastno razmerje | 1000 : 1 (Typ.) (TM) |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10) |
| odgovor | 14 (Typ.)(G to G) ms |
| dober pogled na | Symmetry |
| način dela | IPS, Normally Black, Transmissive |
| barvna globina | 16.7M 72% NTSC |
| osvetlitev ozadja | 14S4P WLED , 30K hours , No Driver |
| masa | 1.81Kgs (Typ.) |
| uporablja za | Desktop Monitor |
| hitrost osveževanja | 60Hz |
| zaslon na dotik | In-Cell Touch |
| vrsto signala | LVDS (2 ch, 8-bit) , 30 pins Connector |
| napajanje z napetostjo | 5.0V (Typ.) |
| maks. ocene | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| LM230WF1-TLA3 | LG Display | 23.0 | 1920×1080 |
| LM230WF1-TLA5 | LG Display | 23.0 | 1920×1080 |
| LM230WF2-SLA2 | LG Display | 23.0 | 1920×1080 |
| LM230WF3-SLB1 | LG Display | 23.0 | 1920×1080 |
| LM230WF3-SLB2 | LG Display | 23.0 | 1920×1080 |
| LM230WF3-SSA1 | LG Display | 23.0 | 1920×1080 |
| LM230WF4-TLA1 | LG Display | 23.0 | 1920×1080 |
| LM230WF5-TLC1 | LG Display | 23.0 | 1920×1080 |
| LM230WF5-TLD1 | LG Display | 23.0 | 1920×1080 |
| LM230WF5-TRA1 | LG Display | 23.0 | 1920×1080 |
