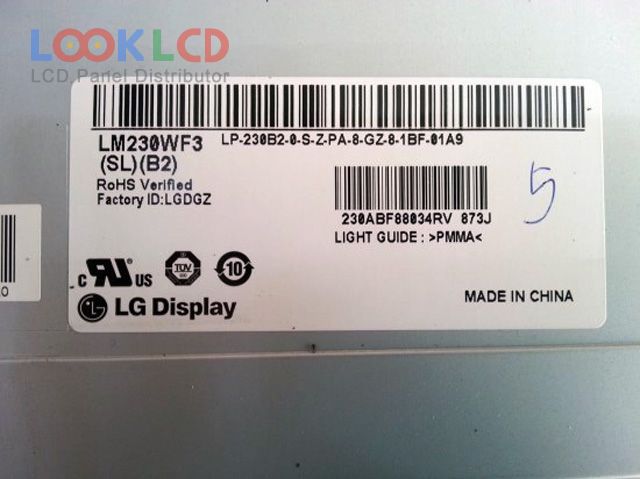

| PartNumber | LM230WF3-SLB2 |
| Znamka | LG Display |
| Velikost | 23.0 |
| Aplikacija | DMPC |
| Resolucija | 1920×1080 |
| Sestava | LCM |
| Svetlost | 250 |
| CR | 1000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | LG Display |
| panelni model | LM230WF3-SLB2 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 23.0 inch |
| resolucija | 1920(RGB)×1080 , FHD |
| način prikaza | S-IPS, Normally Black, Transmissive |
| aktivno območje | 509.184×286.416 mm |
| oris | 533.2×312×11 mm |
| površino | Antiglare, Hard coating (3H) |
| svetlost | 250 cd/m² (Typ.) |
| kontrastno razmerje | 1000:1 (Typ.) |
| barve zaslona | 16.7M (6-bit + Hi-FRC), CIE193172% |
| odzivni čas | 8 (Typ.)(G to G) |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 15S4PWLEDWithout Driver |
| signalni vmesnik | LVDS (2 ch, 8-bit), 30 pins |
| vhodna napetost | 5.0V (Typ.) |
| aplikacija | DMPC |
