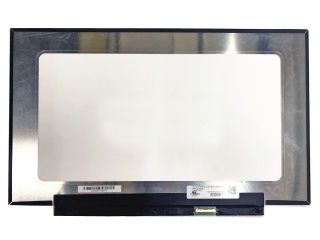

| PartNumber | LM140LF2L |
| Znamka | PANDA |
| Velikost | 14.0 |
| Aplikacija | Laptop |
| Resolucija | 1920×1080 |
| Sestava | Oxide TFT-LCD , LCM |
| Svetlost | |
| CR | 1000:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | eDP |
| znamka | PANDA |
| velikost diagonale | 14.0 inch |
| slikovnih pik | 1920(RGB)×1080 [FHD] 157PPI |
| aktivno območje | 309.312(H)×173.988(V) mm |
| območje okvirja | - |
| svetilnost | 220 cd/m² (Typ.) |
| smer pogleda | Symmetry |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10) |
| podpira barvo | 262K 45% NTSC |
| slog oblike | Slim (PCBA Flat, T≤3.2mm) |
| hitrost sličic | 60Hz |
| tip vmesnika | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| napajanje | 3.3V (Typ.) |
| okolju | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| model | LM140LF2L (NCP002B) |
| vrsta | Oxide TFT-LCD , LCM |
| konfiguracijo | RGB Vertical Stripe |
| obris dim. | 315.81(H)×197.57(V) ×3(D) mm |
| zdravljenje | Antiglare (Haze 25%) |
| kontrastno razmerje | 1000:1 (Typ.) (TM) |
| odzivni čas | 25 (Typ.)(Tr+Td) |
| način delovanja | FFS, Normally Black, Transmissive |
| Izvor svetlobe | WLED , 15K hours , With LED Driver |
| namenjen za | Laptop |
| plošča na dotik | Without |
