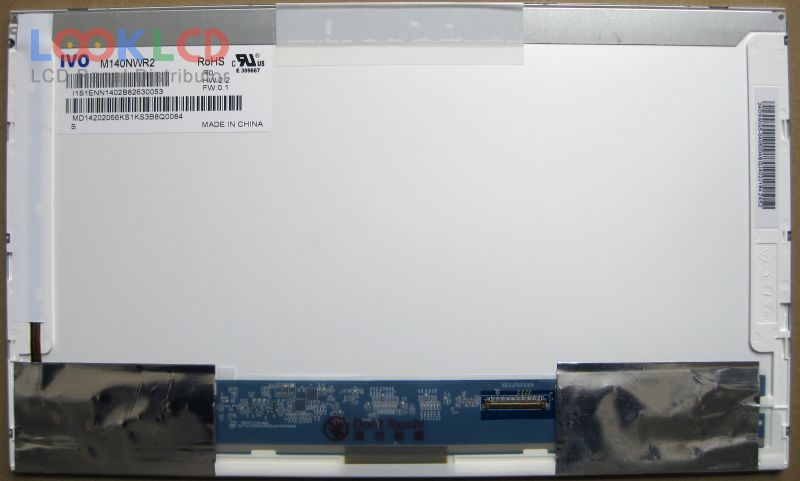

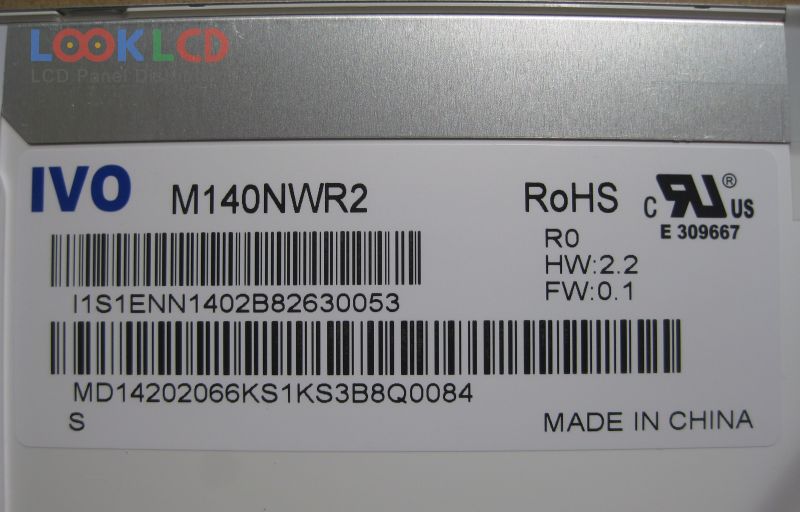

| PartNumber | M140NWR2 R0 |
| Znamka | IVO |
| Velikost | 14.0 |
| Aplikacija | NBPC |
| Resolucija | 1366×768 |
| Sestava | LCM |
| Svetlost | 200 |
| CR | 500:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | IVO |
| panelni model | M140NWR2 R0 1 Compatible model |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 14.0 inch |
| resolucija | 1366(RGB)×768 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 309.399×173.952 mm |
| oris | 323.5×192×5.2 mm |
| slog oblike | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površino | Glare (Haze 0%), Hard coating |
| svetlost | 200 cd/m² (Typ.) |
| kontrastno razmerje | 500:1 (Typ.) |
| barve zaslona | 262K (6-bit) |
| odzivni čas | 8 (Typ.)(Tr+Td) |
| vidni kot | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | WLEDEmbedded (LED Driver) |

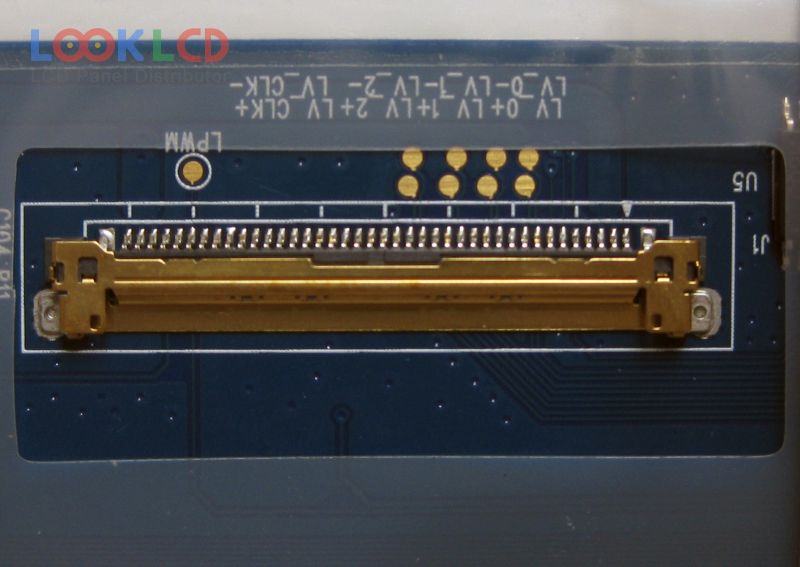

| signalni vmesnik | LVDS (1 ch, 6-bit), 40 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NBPC |
| B140RW03 V1 | AUO | 14.0 | 1600×900 |
| LP140WH1-TLC1 | LG Display | 14.0 | 1366×768 |
| LP140WH2-TPS1 | LG Display | 14.0 | 1366×768 |
| LTN140HL02-201 | Samsung | 14.0 | 1920×1080 |
| M140NWR1 R0 | IVO | 14.0 | 1366×768 |
| M140NWR2 R0 | IVO | 14.0 | 1366×768 |
| M140NWR2 R1 | IVO | 14.0 | 1366×768 |
| M140NWR2 R2 | IVO | 14.0 | 1366×768 |
| M140NWR4 R2 | IVO | 14.0 | 1366×768 |
| N140BGE-L42 | Innolux | 14.0 | 1366×768 |
| B154EW01 V3 | AUO | 15.4 | 1280×800 |
| B170PW03 V1 | AUO | 17.0 | 1440×900 |
| LP133WH2-TLM2 | LG Display | 13.3 | 1366×768 |
| LP156WF1-TLC1 | LG Display | 15.6 | 1920×1080 |
| LP173WF2-TPB1 | LG Display | 17.3 | 1920×1080 |
| LT121SS-124 | Samsung | 12.1 | 800×600 |
| LTM10C348F | TOSHIBA | 10.4 | 800×600 |
| LTN156AT02-D02 | Samsung | 15.6 | 1366×768 |
| LTN160HT03-001 | Samsung | 16.0 | 1920×1080 |
| N140BGE-EA3 | Innolux | 14.0 | 1366×768 |
