| PartNumber | LA121WH1-SL02 |
| Znamka | LG Display |
| Velikost | 12.1 |
| Aplikacija | Automotive Display |
| Resolucija | 1280×720 |
| Sestava | LCM , a-Si TFT-LCD |
| Svetlost | |
| CR | 1000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | 8S3P |
| Vmesnik | LVDS |
| proizvajalec | LG Display |
| ime modela | LA121WH1-SL02 |
| velikost zaslona | 12.1 inch |
| vrsto zaslona | LCM , a-Si TFT-LCD |
| število slikovnih pik | 1280(RGB)×720 (WXGA) 121PPI |
| ureditev | RGB Vertical Stripe |
| aktivna površina (mm) | 266.88 × 150.12 (H×V) |
| obris (mm) | 287.4 × 163.45 × 9.51 (H×V×D) |
| površina okvirja (mm) | 269.65 × 152.55 (H×V) |
| zdravljenje | Antiglare |
| svetilnost | 500 cd/m² (Typ.) |
| kontrastno razmerje | 1000 : 1 (Typ.) (TM) |
| vidni kot | 80/80/80/80 (Min.)(CR≥10) |
| odgovor | 17/13 (Max.)(Tr+Td) ms |
| dober pogled na | Symmetry |
| način dela | IPS, Normally Black, Transmissive |
| barvna globina | 16.7M 62% NTSC |
| osvetlitev ozadja | 8S3P WLED , 10K hours , No Driver |
| masa | 417±5g |
| uporablja za | Automotive Display |
| hitrost osveževanja | 60Hz |
| zaslon na dotik | Without |

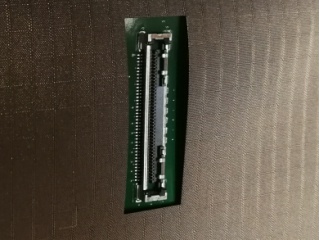

| vrsto signala | LVDS (1 ch, 8-bit) , 40 pins Connector |
| napajanje z napetostjo | 3.3V (Typ.) |
| maks. ocene | Storage Temp.: -40 ~ 95 °C Operating Temp.: -30 ~ 85 °C |
