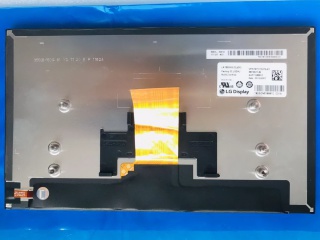

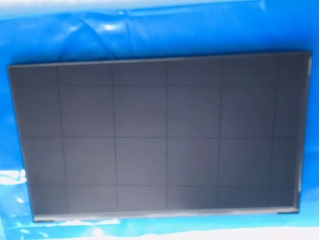

| PartNumber | LA102WH2-SL01 |
| Znamka | LG Display |
| Velikost | 10.2 |
| Aplikacija | Automotive Display |
| Resolucija | 1280×720 |
| Sestava | LCM, a-Si TFT-LCD |
| Svetlost | |
| CR | 800:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | 10S4P |
| Vmesnik | LVDS |
| proizvajalec | LG Display |
| ime modela | LA102WH2-SL01 |
| velikost zaslona | 10.2 inch |
| vrsto zaslona | LCM, a-Si TFT-LCD |
| število slikovnih pik | 1280(RGB)×720 (WXGA) 143PPI |
| ureditev | RGB Vertical Stripe |
| aktivna površina (mm) | 225.792 × 127.008 (H×V) |
| obris (mm) | 238.62 × 141.5 (H×V×D) |
| površina okvirja (mm) | 225.75 × 126.874 (H×V) |
| zdravljenje | Hard coating (3H) |
| svetilnost | 725 cd/m² (Min.) |
| kontrastno razmerje | 800 : 1 (Min.) (TM) |
| vidni kot | 89/89/89/89 (Min.)(CR≥10) |
| odgovor | 30 (Max.)(Tr+Td) ms |
| dober pogled na | Symmetry |
| način dela | IPS, Normally Black, Transmissive |
| barvna globina | 16.7M |
| osvetlitev ozadja | 10S4P WLED , 10K hours , No Driver |
| masa | 303/313g (Typ./Max.) |
| uporablja za | Automotive Display |
| hitrost osveževanja | 60Hz |
| zaslon na dotik | Without |
| vrsto signala | LVDS (1 ch, 8-bit) , FPC 64 pins |
| napajanje z napetostjo | 1.8/3.3/12.5/18.5/-7.5V (Typ.)(DVDD2/DVDD1/AVDD/VHG/VHL) |
| maks. ocene | Storage Temp.: -40 ~ 85 °C Operating Temp.: -40 ~ 85 °C ; Vibration Level: 3.16G (31.0 m/s²) |
