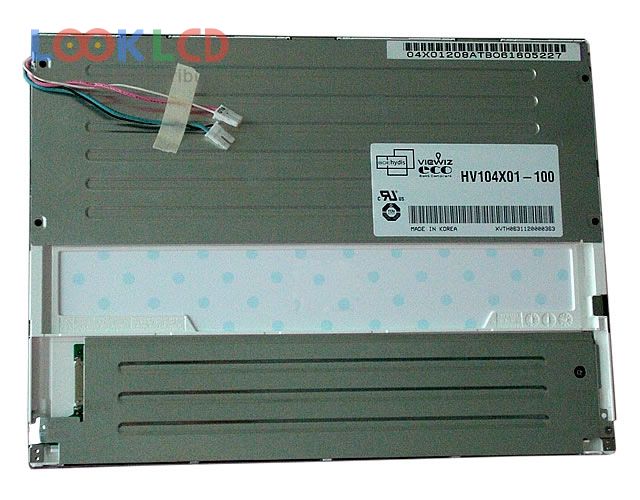

| PartNumber | HV104X01-100 |
| Znamka | HYDIS |
| Velikost | 10.4 |
| Aplikacija | GM |
| Resolucija | 1024×768 |
| Sestava | LCM |
| Svetlost | 350 |
| CR | 500:1 |
| Barve | 262K |
| Osvetlitev ozadja | CCFL |
| Vmesnik | LVDS |
| znamka plošče | BOE HYDIS |
| panelni model | HV104X01-100 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 10.4 inch |
| resolucija | 1024(RGB)×768 , XGA |
| način prikaza | FFS, Normally Black, Transmissive |
| aktivno območje | 210.4×157.8 mm |
| oris | 237.8×178.3 mm |
| površino | Antiglare (Haze 25%), Hard coating (3H) |
| svetlost | 350 cd/m² (Typ.) |
| kontrastno razmerje | 500:1 (Typ.) |
| barve zaslona | 262K (6-bit), CIE193140% |
| odzivni čas | 40 (Typ.)(Tr+Td) |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 2 pcsCCFLWithout Driver |
| signalni vmesnik | LVDS (1 ch, 6-bit), 14 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | GM |
