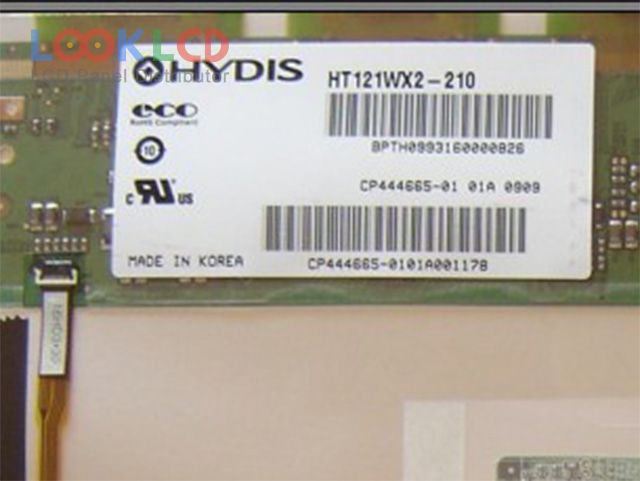

| PartNumber | HT121WX2-210 |
| Znamka | HYDIS |
| Velikost | 12.1 |
| Aplikacija | PAD |
| Resolucija | 1280×800 |
| Sestava | LCM |
| Svetlost | 200 |
| CR | 600:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | HYDIS |
| panelni model | HT121WX2-210 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 12.1 inch |
| resolucija | 1280(RGB)×800 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 261.12×163.2 mm |
| oris | 276.8×180×6.8 mm |
| površino | Glare (Haze 0%) |
| svetlost | 200 cd/m² (Typ.) |
| kontrastno razmerje | 600:1 (Typ.) |
| barve zaslona | 262K (6-bit) |
| odzivni čas | 10/15 (Typ.)(Tr/Td) |
| vidni kot | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 12S4PWLEDEmbedded (LED Driver) |
| signalni vmesnik | LVDS (1 ch, 6-bit), 40 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | PAD |
