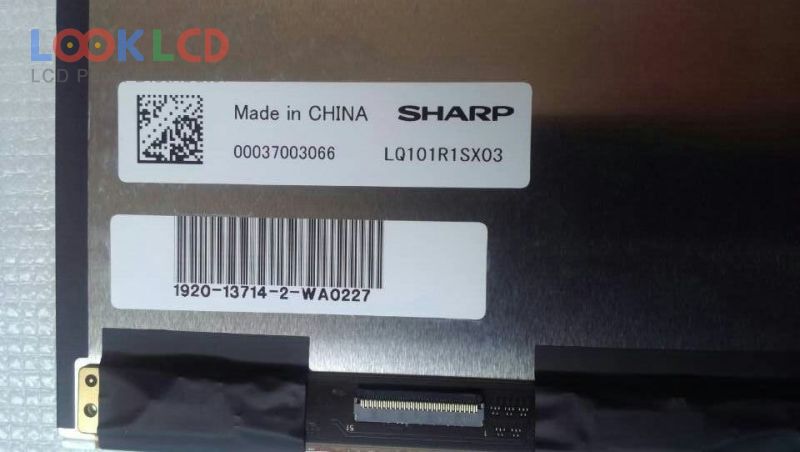

| PartNumber | LQ101R1SX03 |
| Znamka | SHARP |
| Velikost | 10.1 |
| Aplikacija | PAD |
| Resolucija | 2560×1600 |
| Sestava | LCM |
| Svetlost | 400 |
| CR | 900:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | MIPI |
| znamka plošče | SHARP |
| panelni model | LQ101R1SX03 |
| vrsta plošče | IGZO TFT-LCD , LCM |
| velikost plošče | 10.1 inch |
| resolucija | 2560(RGB)×1600 , WQXGA |
| način prikaza | Normally Black, Transmissive |
| aktivno območje | 216.96×135.6 mm |
| oris | 228.2×148.6×4.45 mm |
| površino | Clear, Hard coating |
| svetlost | 400 cd/m² (Typ.) |
| kontrastno razmerje | 900:1 (Typ.) |
| barve zaslona | 16.7M (8-bit), CIE193150% |
| odzivni čas | 25 (Typ.)(Tr+Td) |
| vidni kot | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 7S6PWLEDWithout Driver |
| signalni vmesnik | MIPI (2 ch, 4 data lanes), 51 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | PAD |
