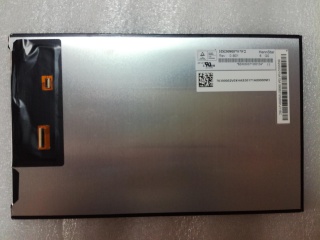

| PartNumber | HSD080PWW2-B01 |
| Znamka | HannStar |
| Velikost | 8.0 |
| Aplikacija | Pad & Tablet Ind |
| Resolucija | 800×1280 |
| Sestava | a-Si TFT-LCD, LCM |
| Svetlost | |
| CR | 800:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | |
| znamka | HannStar |
| model | HSD080PWW2-B01 |
| velikost diagonale | 8.0 inch |
| vrsta | a-Si TFT-LCD, LCM |
| slikovnih pik | 800(RGB)×1280 [WXGA] 188PPI |
| konfiguracijo | RGB Vertical Stripe |
| aktivno območje | 107.64(H)×172.224(V) mm |
| obris dim. | 114.8(H)×184.7(V) ×3.71(D) mm |
| območje okvirja | - |
| zdravljenje | Hard coating (3H) |
| svetilnost | 450 cd/m² (Typ.) |
| kontrastno razmerje | 800:1 (Typ.) (TM) |
| smer pogleda | Symmetry |
| odzivni čas | 30 (Typ.)(Tr+Td) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| način delovanja | IPS Pro, Normally Black, Transmissive |
| podpira barvo | 16.7M 60% NTSC |
| Izvor svetlobe | WLED [7S3P] , 15K hours , W/O Driver |
| utež | 100g (Typ.) |
| namenjen za | Pad & Tablet Industrial |
| hitrost sličic | 60Hz |
| plošča na dotik | Without |
| Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -30 ~ 65 °C |
