| PartNumber | B133XW04 V0 |
| Znamka | AUO |
| Velikost | 13.3 |
| Aplikacija | NBPC |
| Resolucija | 1366×768 |
| Sestava | LCM |
| Svetlost | 200 |
| CR | 500:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | AUO |
| panelni model | B133XW04 V0 1 Compatible model |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 13.3 inch |
| resolucija | 1366(RGB)×768 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 293.42×164.97 mm |
| oris | 307.6×183.1×5.2 mm |
| slog oblike | Wedge (PCBA Bent, Depth ≥5.2mm) |
| površino | Glare (Haze 0%), Hard coating (3H) |
| svetlost | 200 cd/m² (Typ.) |
| kontrastno razmerje | 500:1 (Typ.) |
| barve zaslona | 262K (6-bit), CIE193145% |
| odzivni čas | 8 (Typ.)(Tr+Td) |
| vidni kot | 45/45/15/35 (Min.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | WLEDEmbedded (LED Driver) |

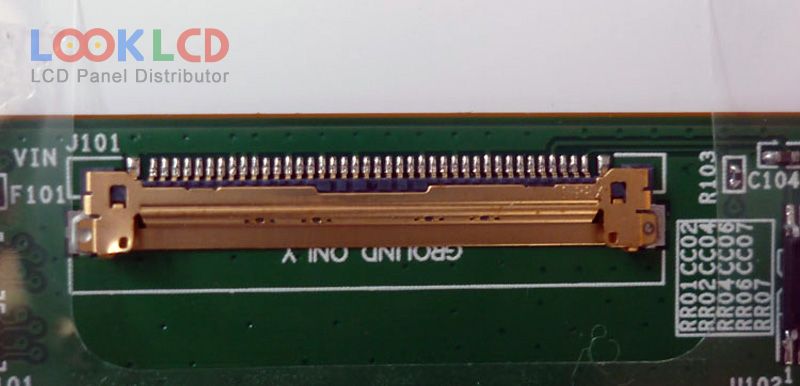

| signalni vmesnik | LVDS (1 ch, 6-bit), 40 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NBPC |
| B133XTN01.0 | AUO | 13.3 | 1366×768 |
| B133XTN01.2 | AUO | 13.3 | 1366×768 |
| B133XTN01.6 HW0A | AUO | 13.3 | 1366×768 |
| B133XTN01.6 HW1A | AUO | 13.3 | 1366×768 |
| B133XTN02.1 | AUO | 13.3 | 1366×768 |
| B133XW01 V2 | AUO | 13.3 | 1366×768 |
| B133XW01 V7 | AUO | 13.3 | 1366×768 |
| B133XW03 V2 | AUO | 13.3 | 1366×768 |
| B133XW03 V3 | AUO | 13.3 | 1366×768 |
| B133XW04 V0 | AUO | 13.3 | 1366×768 |
| B170PW03 V3 | AUO | 17.0 | 1440×900 |
| B170UW01 V0 | AUO | 17.0 | 1920×1200 |
| HB140WX1-500 | BOE | 14.0 | 1366×768 |
| LP141WX1-TLA1 | LG Display | 14.1 | 1280×800 |
| LP156WH2-TLC1 | LG Display | 15.6 | 1366×768 |
| LP171WP9-TLB2 | LG Display | 17.1 | 1440×900 |
| LTN121XJ-L05 | Samsung | 12.1 | 1024×768 |
| LTN140AT21-801 | Samsung | 14.0 | 1366×768 |
| N140O6-L02 | Innolux | 14.0 | 1600×900 |
| NT156FHM-N41 | BOE | 15.6 | 1920×1080 |
