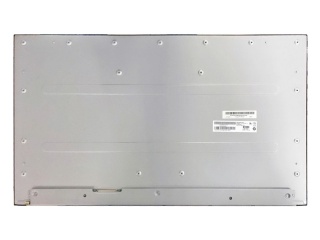

| PartNumber | G070VAN01.1 |
| Znamka | AUO |
| Velikost | 7.0 |
| Aplikacija | Industrial |
| Resolucija | 800×480 |
| Sestava | LCM , a-Si TFT-LCD |
| Svetlost | |
| CR | 1300:1 |
| Barve | 262K/16.7M |
| Osvetlitev ozadja | 7S2P |
| Vmesnik | LVDS |
| proizvajalec | AUO |
| velikost zaslona | 7.0 inch |
| število slikovnih pik | 800×480(RGB) (WVGA) 133PPI |
| aktivna površina (mm) | 152.4 × 91.44 (H×V) |
| površina okvirja (mm) | 154.2 × 93.24 (H×V) |
| svetilnost | 200 cd/m² (Typ.) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| dober pogled na | Symmetry |
| barvna globina | 262K/16.7M 60% NTSC |
| masa | 160g (Typ.) |
| hitrost osveževanja | 60Hz |
| vrsto signala | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
| napajanje z napetostjo | 3.3V (Typ.) |
| maks. ocene | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| ime modela | G070VAN01.1 |
| vrsto zaslona | LCM , a-Si TFT-LCD |
| ureditev | RGB Horizontal Stripe |
| obris (mm) | 166.6 × 107 × 10 (H×V×D) |
| zdravljenje | Antiglare |
| kontrastno razmerje | 1300 : 1 (Typ.) (TM) |
| odgovor | 11/19 (Max.)(Tr/Td) ms |
| način dela | AHVA, Normally Black, Transmissive |
| osvetlitev ozadja | 7S2P WLED , 30K hours , No Driver |
| uporablja za | Industrial |
| zaslon na dotik | Without |
