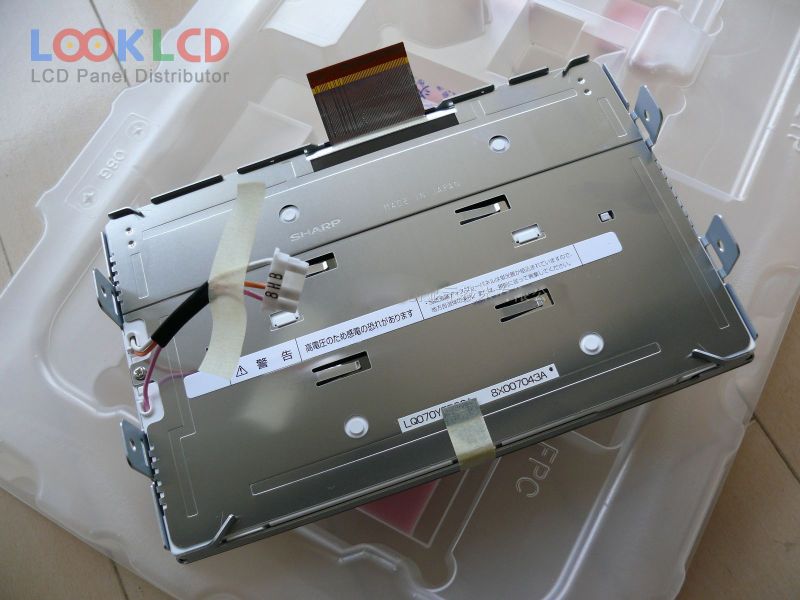

| PartNumber | LQ070Y5DG01 |
| Znamka | SHARP |
| Velikost | 7.0 |
| Aplikacija | CNS |
| Resolucija | 800×480 |
| Sestava | LCM |
| Svetlost | 530 |
| CR | 250:1 |
| Barve | 262K |
| Osvetlitev ozadja | CCFL |
| Vmesnik | TTL |
| znamka plošče | SHARP |
| panelni model | LQ070Y5DG01 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 7.0 inch |
| resolucija | 800(RGB)×480 , WVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 152.4×91.44 mm |
| oris | 172.2×110.5×25 mm |
| površino | Antiglare, Antireflection |
| svetlost | 530 cd/m² (Typ.) |
| kontrastno razmerje | 250:1 (Typ.) |
| barve zaslona | 262K (6-bit) |
| odzivni čas | 10/20 (Typ.)(Tr/Td) |
| vidni kot | 60/60/35/50 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 2 pcsCCFLWithout Driver |
| signalni vmesnik | Parallel RGB (1 ch, 6-bit), 60 pins |
| vhodna napetost | 5.3/3.3/13.0/-11.7/-13.7/-17.0V (Typ.)(VLS/VSH/VDD/VEE/VCC/VSS) |
| aplikacija | CNS |
