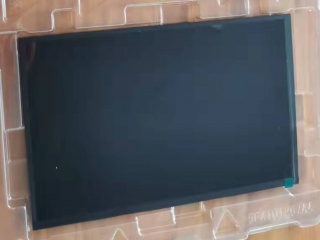

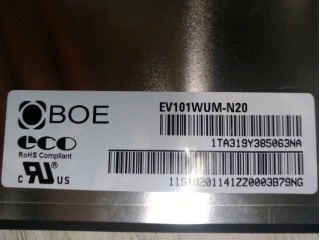

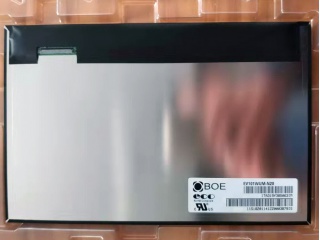

| PartNumber | EV101WUM-N20 |
| Znamka | BOE |
| Velikost | 10.1 |
| Aplikacija | Medical Imaging |
| Resolucija | 1920×1200 |
| Sestava | a-Si TFT-LCD, LCM |
| Svetlost | |
| CR | 900:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka | BOE |
| model | EV101WUM-N20 |
| velikost diagonale | 10.1 inch |
| vrsta | a-Si TFT-LCD, LCM |
| slikovnih pik | 1920(RGB)×1200 [WUXGA] 224PPI |
| konfiguracijo | RGB Vertical Stripe |
| aktivno območje | 216.806(H)×135.504(V) mm |
| obris dim. | 229.45(H)×149.22(V) mm |
| svetilnost | 600 cd/m² (Typ.) |
| kontrastno razmerje | 900:1 (Typ.) (TM) |
| smer pogleda | Symmetry |
| odzivni čas | 30 (Typ.)(Tr+Td) |
| vidni kot | 80/80/80/80 (Typ.)(CR≥10) |
| način delovanja | ADS, Normally Black, Transmissive |
| podpira barvo | 16.7M 72% NTSC |
| Izvor svetlobe | WLED , W/O Driver |
| utež | - |
| namenjen za | Medical Imaging |
| hitrost sličic | 60Hz |
| plošča na dotik | Without |
| tip vmesnika | LVDS (1 ch, 8-bit) , 45 pins Connector |
| napajanje | 3.3V (Typ.) |
| okolju | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -25 ~ 80 °C |
