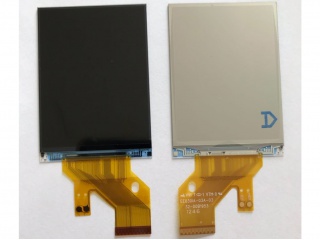

| PartNumber | EE030IA-03A |
| Znamka | Chimei Innolux |
| Velikost | 3.0 |
| Aplikacija | Digital Still Camera |
| Resolucija | 640×480 |
| Sestava | CELL , a-Si TFT-LC |
| Svetlost | |
| CR | 800:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | No |
| Vmesnik | YUV |
| proizvajalec | Chimei Innolux |
| velikost zaslona | 3.0 inch |
| število slikovnih pik | 640×480(RGB) (VGA) 270PPI |
| aktivna površina (mm) | 60 × 45 (H×V) |
| površina okvirja (mm) | - |
| svetilnost | 0 cd/m² |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| dober pogled na | Symmetry |
| debelina stekla | 0.25+0.25 mm |
| barvna globina | 16.7M 60% NTSC |
| masa | 5.89g (Typ.) |
| hitrost osveževanja | 60Hz |
| vrsto signala | YUV (16-bit) , 51 pins FPC |
| napajanje z napetostjo | 1.8/3.1V (VDDIO/VDD) |
| maks. ocene | Storage Temp.: -30 ~ 80 °C Operating Temp.: -10 ~ 70 °C |
| ime modela | EE030IA-03A |
| vrsto zaslona | CELL , a-Si TFT-LCD |
| ureditev | RGB Horizontal Stripe |
| obris (mm) | 69 × 49 × 0.8 (H×V×D) |
| zdravljenje | Hard coating |
| kontrastno razmerje | 800 : 1 (Typ.) (TM) |
| odgovor | 35 (Typ.)(Tr+Td) ms |
| način dela | IPS, Normally Black, Transmissive |
| transmisivnost | 4.5% (Typ.)(with Polarizer) |
| osvetlitev ozadja | No B/L , No Driver |
| uporablja za | Digital Still Camera Digital Video Camera |
| zaslon na dotik | Without |
