| PartNumber | COM57T5N07RSS |
| Znamka | Ortustech |
| Velikost | 5.7 |
| Aplikacija | Industrial |
| Resolucija | 640×480 |
| Sestava | a-Si TFT-LCD , LCM |
| Svetlost | |
| CR | 1000:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | Parallel |
| znamka | Ortustech |
| velikost diagonale | 5.7 inch |
| slikovnih pik | 640(RGB)×480 [VGA] 141PPI |
| aktivno območje | 115.2(H)×86.4(V) mm |
| območje okvirja | - |
| svetilnost | 500 cd/m² (Typ.) |
| smer pogleda | Symmetry |
| vidni kot | 80/80/80/80 (Typ.)(CR≥10) |
| podpira barvo | 262K 50% NTSC |
| utež | - |
| hitrost sličic | 60Hz |
| tip vmesnika | Parallel RGB (1 ch, 6-bit) Connector |
| okolju | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| model | COM57T5N07RSS |
| vrsta | a-Si TFT-LCD , LCM |
| konfiguracijo | RGB Vertical Stripe |

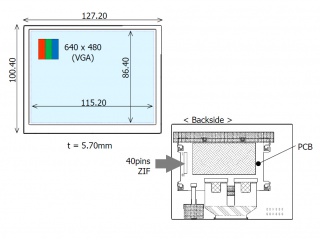

| obris dim. | 127.2(H)×100.4(V) mm |
| zdravljenje | Hard coating (3H) |
| kontrastno razmerje | 1000:1 (Typ.) (TM) |
| odzivni čas | - |
| način delovanja | IPS, Normally Black, Transmissive |
| Izvor svetlobe | WLED [5S3P] , 50K hours , With LED Driver |
| namenjen za | Industrial |
| plošča na dotik | Without |
