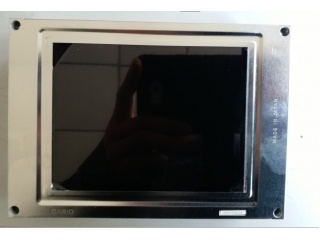

| PartNumber | COM55T5103RSP |
| Znamka | CASIO |
| Velikost | 5.5 |
| Aplikacija | Industrial |
| Resolucija | 320×234 |
| Sestava | a-Si TFT-LCD , LCM |
| Svetlost | |
| CR | 60:1 |
| Barve | Full |
| Osvetlitev ozadja | 1 |
| Vmesnik | Analog |
| znamka plošče | CASIO |
| velikost plošče | 5.5" |
| resolucija | 320(RGB)×234, 72PPI |
| prikazno območje | 110.4(W)×83.538(H) mm |
| velikost obrisa | 163(W)×115(H) ×32.5(D) mm |
| svetlost | 350 cd/m² (Typ.) |
| vidni kot | 35/35/30/35 (Typ.)(CR≥10) |
| najboljši pogled na | 12 o'clock |
| barve zaslona | Full color |
| pogostost | 60Hz |
| teža plošče | 400g (Typ.) |
| signalni vmesnik | Analog RGB , 12 pins Connector |
| vhodna napetost | 12.0V (Typ.) |
| okolju | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -10 ~ 60 °C |
| panelni model | COM55T5103RSP |
| vrsta plošče | a-Si TFT-LCD , LCM |
| slikovnih pik | RGB Vertical Stripe |
| odprtina okvirja | - |
| površino | - |
| kontrastno razmerje | 60:1 (Min.) (TM) |
| način prikaza | TN, Normally White, Transmissive |
| odzivni čas | - |
| tip svetilke | 1 pcs CCFL , With Inverter |
| zaslon na dotik | Without |
| aplikacija | Industrial |
