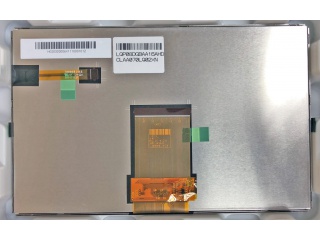

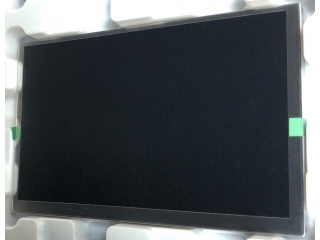

| PartNumber | CLAA070LQ02 XN |
| Znamka | CPT |
| Velikost | 7.0 |
| Aplikacija | Automotive Display |
| Resolucija | 800×480 |
| Sestava | LCM, a-Si TFT-LCD |
| Svetlost | |
| CR | 900:1 |
| Barve | 262K/16.7M |
| Osvetlitev ozadja | 7S2P |
| Vmesnik | LVDS |
| proizvajalec | CPT |
| ime modela | CLAA070LQ02 XN |
| velikost zaslona | 7.0 inch |
| vrsto zaslona | LCM, a-Si TFT-LCD |
| število slikovnih pik | 800(RGB)×480 (WVGA) 133PPI |
| ureditev | RGB Vertical Stripe |
| aktivna površina (mm) | 152.4 × 91.44 (H×V) |
| obris (mm) | 165 × 104 × 7.3 (H×V×D) |
| površina okvirja (mm) | 154.4 × 93.44 (H×V) |
| zdravljenje | Antiglare (Haze 25%) |
| svetilnost | 760 cd/m² (Typ.) |
| kontrastno razmerje | 900 : 1 (Typ.) (TM) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| odgovor | 25 (Typ.)(Tr+Tf) ms |
| dober pogled na | Symmetry |
| način dela | HFFS, Normally Black, Transmissive |
| barvna globina | 262K/16.7M 70% NTSC |
| osvetlitev ozadja | 7S2P WLED , 30K hours , No Driver |
| masa | 175g (Typ.) |
| uporablja za | Automotive Display |
| hitrost osveževanja | 60Hz |
| zaslon na dotik | Without |
| vrsto signala | LVDS (1 ch, 6/8-bit) , FPC 60 pins |
| napajanje z napetostjo | 3.3/13.0/20.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| maks. ocene | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
