| PartNumber | B173HW01 V4 |
| Znamka | AUO |
| Velikost | 17.3 |
| Aplikacija | NBPC |
| Resolucija | 1920×1080 |
| Sestava | LCM |
| Svetlost | 300 |
| CR | 600:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | AUO |
| panelni model | B173HW01 V4 5 Compatible model |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 17.3 inch |
| resolucija | 1920(RGB)×1080 , FHD |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 381.888×214.812 mm |
| oris | 398.1×232.8×6 mm |
| slog oblike | Wedge (PCBA Bent, Depth ≥5.2mm) |

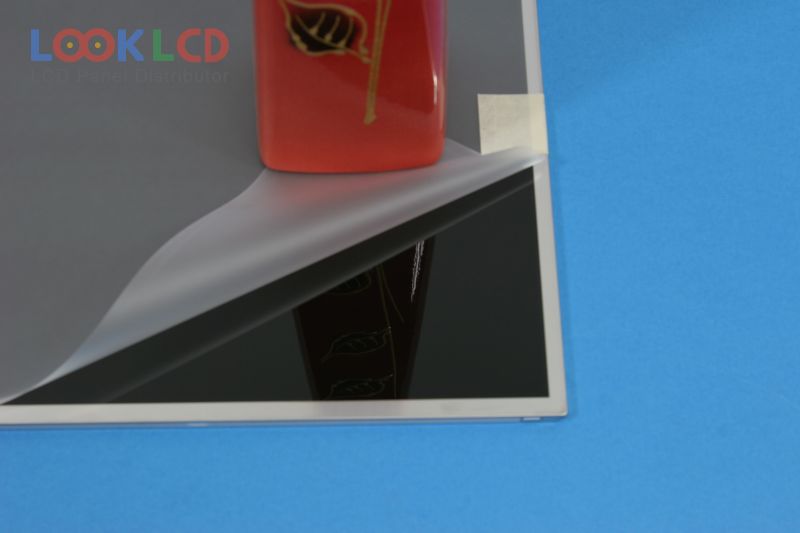

| površino | Glare (Haze 0%), Hard coating (4H) |
| svetlost | 300 cd/m² (Typ.) |
| kontrastno razmerje | 600:1 (Typ.) |
| barve zaslona | 262K (6-bit), CIE193190% |
| odzivni čas | 8 (Typ.)(Tr+Td) |
| vidni kot | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | WLEDEmbedded (LED Driver) |
| signalni vmesnik | LVDS (2 ch, 6-bit), 40 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NBPC |
